Compact Super Profi

Available trailing shoe systems:
– Compact Super Profi 15 meters
– Compact Super Profi 18 meters

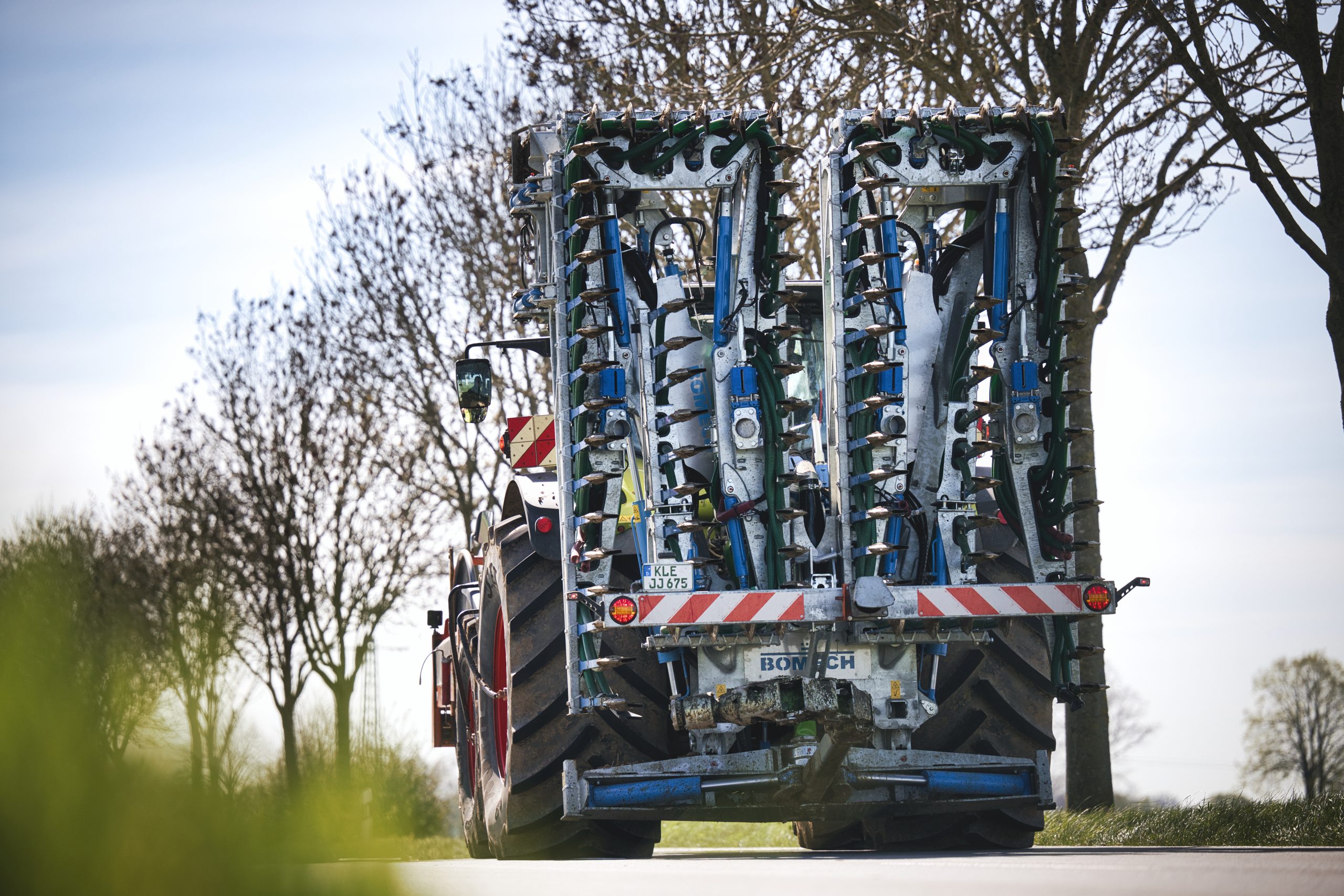

With the newly developed Bomech trailing shoe distributor for umbilical systems, Bomech responds to the increasing demand of the market for even more precise umbilical systems, while maintaining the quality, experience and very low own weight that Bomech offers as standard. The Compact super profi is a true professional machine that meets the ever increasing demands of users and legislators. With a smart and compact folding and a max. transport width of 2.99 m behind the tractor, even road travel is no problem for this newly developed trailing shoe distributor. The Compact Super Profi is available in working widths of 15 m and 18 m and has a hose distance of 18.75 cm as standard.



Minimal forces on machine, tractor and land

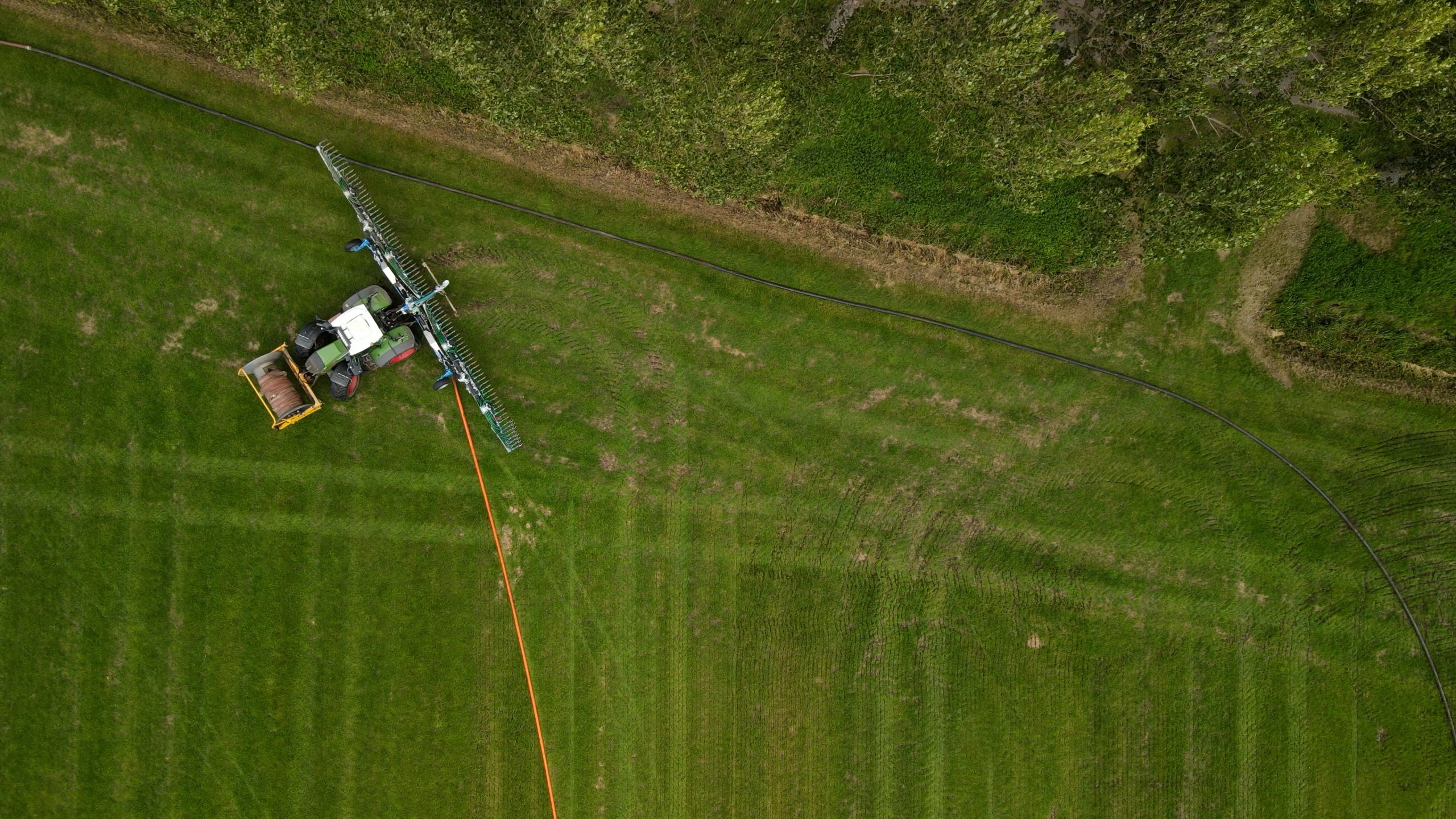

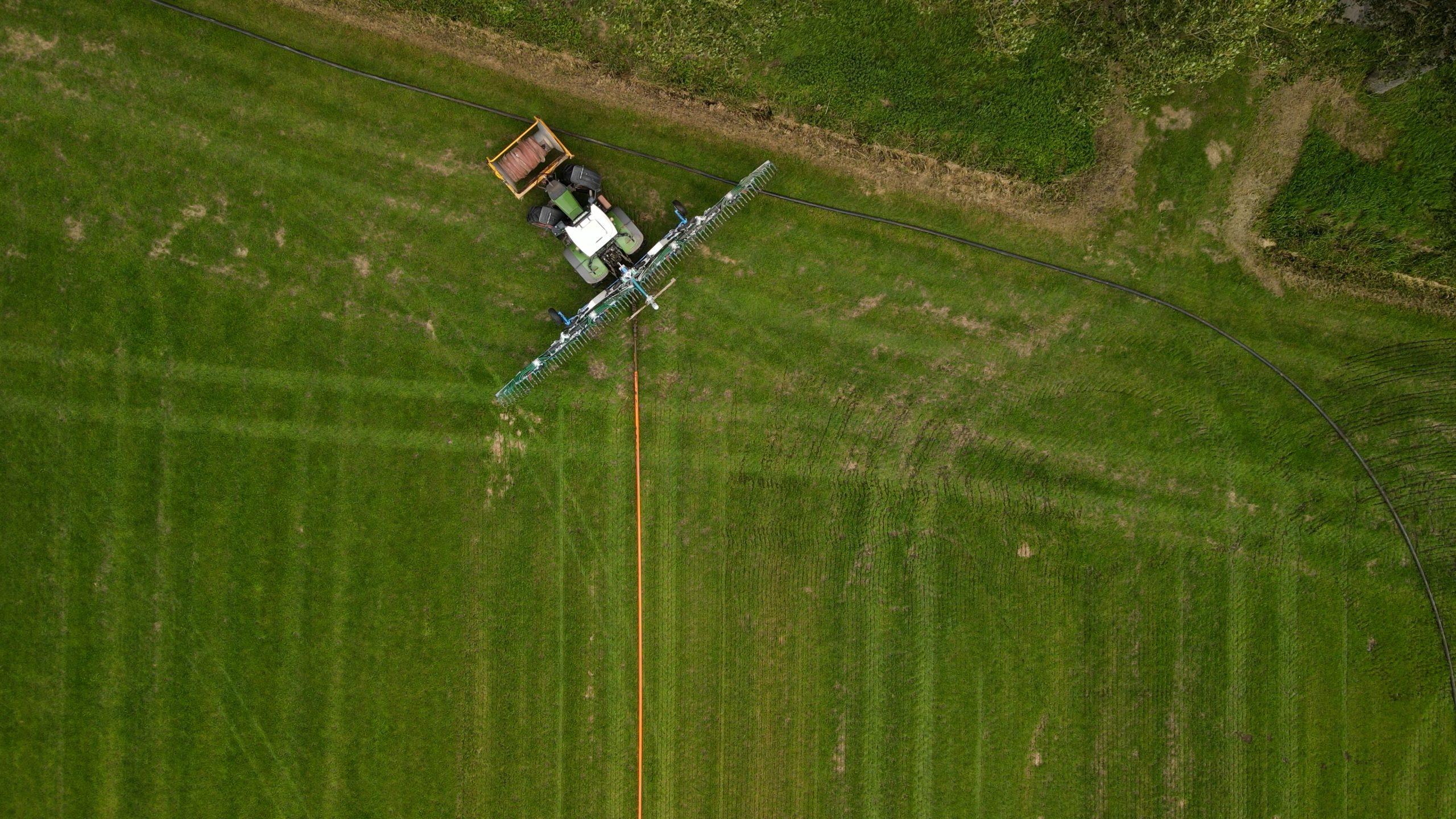

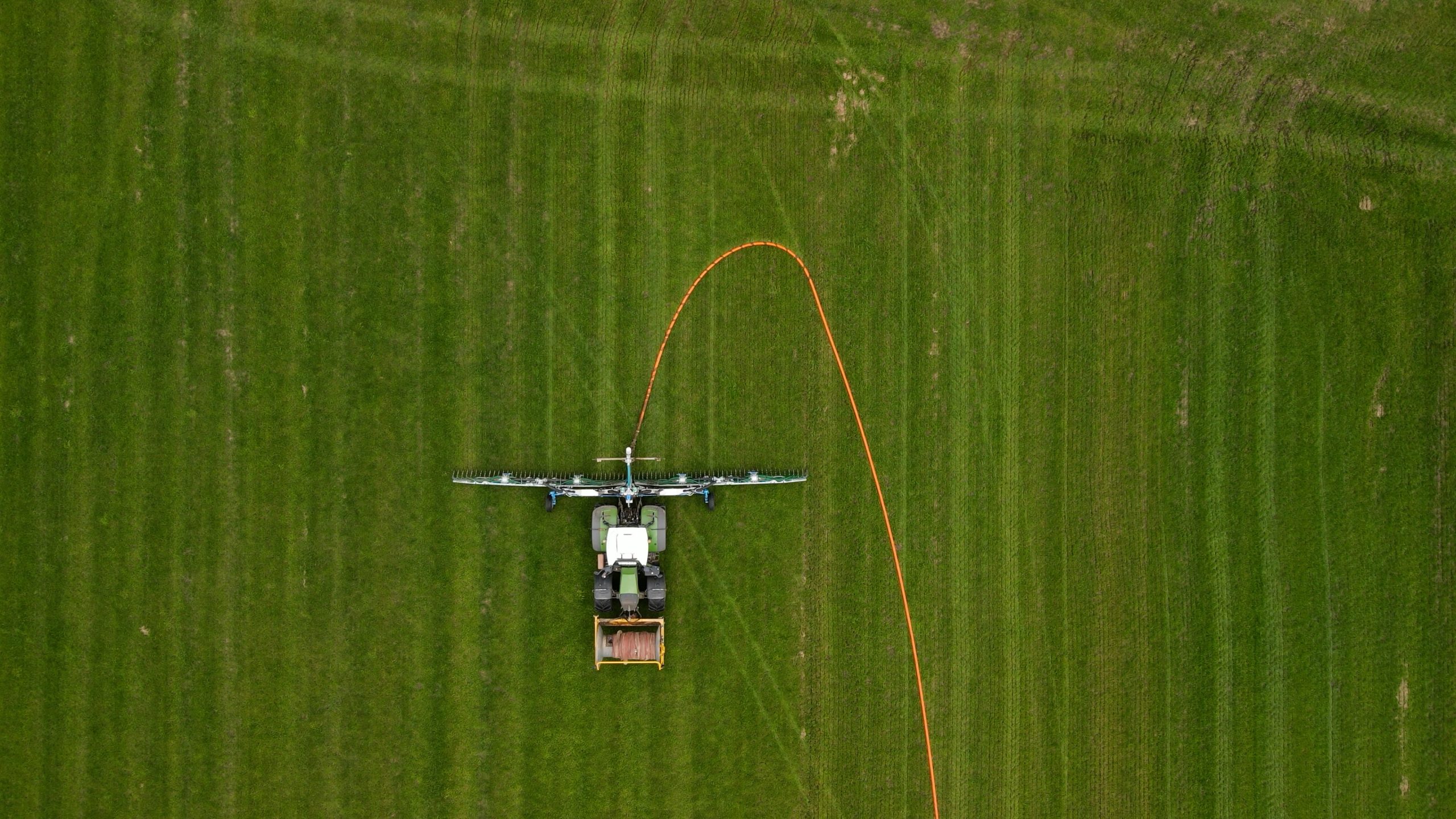

The Compact Super Profi for umbilical systems is equipped as standard with a robustly constructed swivel tube, which has a very large turning range of more than 170 degrees. This allows the swivel tube with trailing shoe to lie close to the tractor, so that reversing is posible without any problems. Due to the very favourable positioning of the swivel tube pivot point between the lower coupling of the tractor and swivel tube placed low to the ground, the drag hose has a lot of free hose length when turning. This means that the forces caused by the drag hose when turning have no effect on the tractor, machine and grassland. Together with the new automatic function for autonomous “holding” and “releasing” of the swivel tube from the centre position, cornering is made easy.

Features of the Compact Super Profi:
  1. Transport width only 2.99 m
  2. Total height below 3,99 m m
  3. Hose distance 18.75
  4. Low own weight
  5. Optimum ground tracking thanks to the integrated pendlesystem
  6. All cylinders have end cushioning for maximum fermorance
  7. Two seperate controllable machine halves
  8. Four Alrena precision macerators with rotating cutting system
  9. 170 degree rotatable and fully automatic swivel tube
  10. The Compact Super Profi is secured with a 3-dimensional impact protection system of 1.5 m
  11. Equipped with two large support wheels
  12. A half-width section control is standard (hydraulic or with compressed air)
  13. Equipped as standard with a hydraulic valve to blow off the first liquid manure
  14. Control with ISOBUS
  15. Large ground clearance at the headland due to lifting in V-position with raised support wheels
  16. Possibility to spread slurry on different working widths in combination with the Alrena ASC compressed air system
  17. Prepared for 3-point linkage, category 3
  18. The Compact Super Profi series is equipped with armoured trailing shoes as standard
    19. Technical data 15 meters

    – Working width 15 m
    – Transport width 2,99 m
    – Weight 3400 kg
    – Hose distance 18,75 cm
    – No. of outlets 80

    Technical data 18 meters

    – Working width 18 m
    – Transport width 2,99 m
    – Weight 3650 kg
    – Hose distance 18,75 cm
    – No. of outlets 96
