Disc Injector

Available Disc Injectors:
– Disc injector 6.4 metre
– Disc injector 7.2 metre

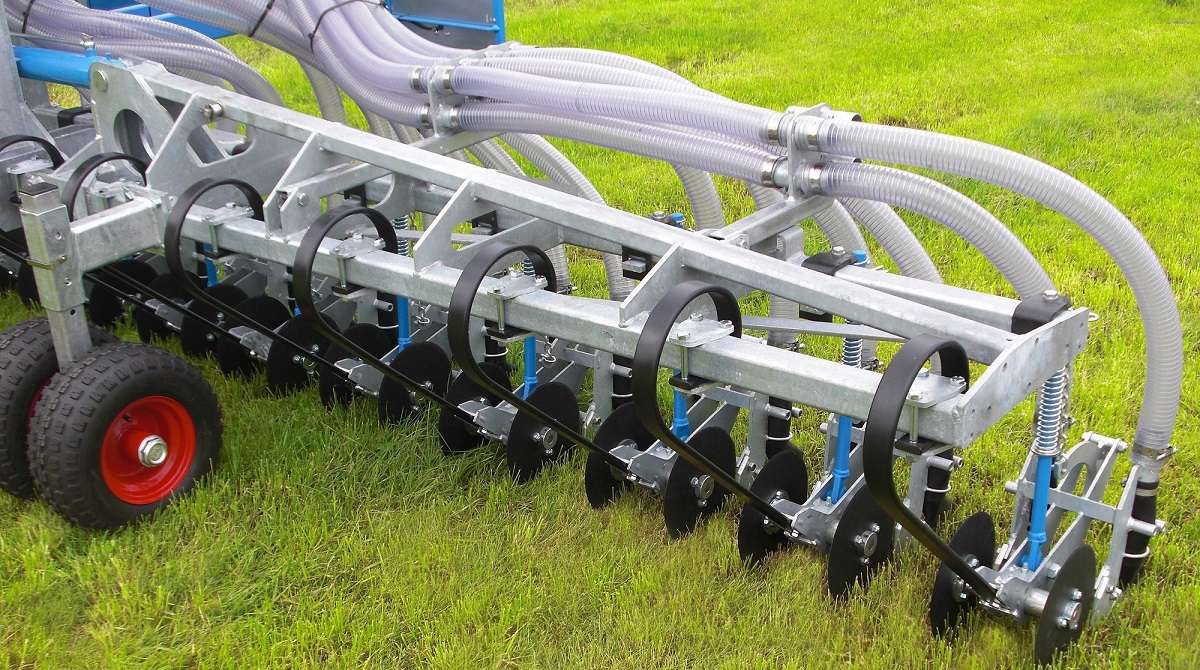

The Bomech Disc Injector is a compact slurry distributing system and is available in working widths of 6.4 m and 7.2 m. The disc injector is easy to mount on any tank with a linkage.

This technology allows the plants faster access to nutrients. Furthermore, by reducing leaf contamination it also improves the quality of the basic feed and positively affects the cattle’s feed intake. Once output is complete, the parted plants move back together so odours will be minimized.

Disc Injector features:

1. Lightweight
2. Simple and solid construction, minimum maintenance required

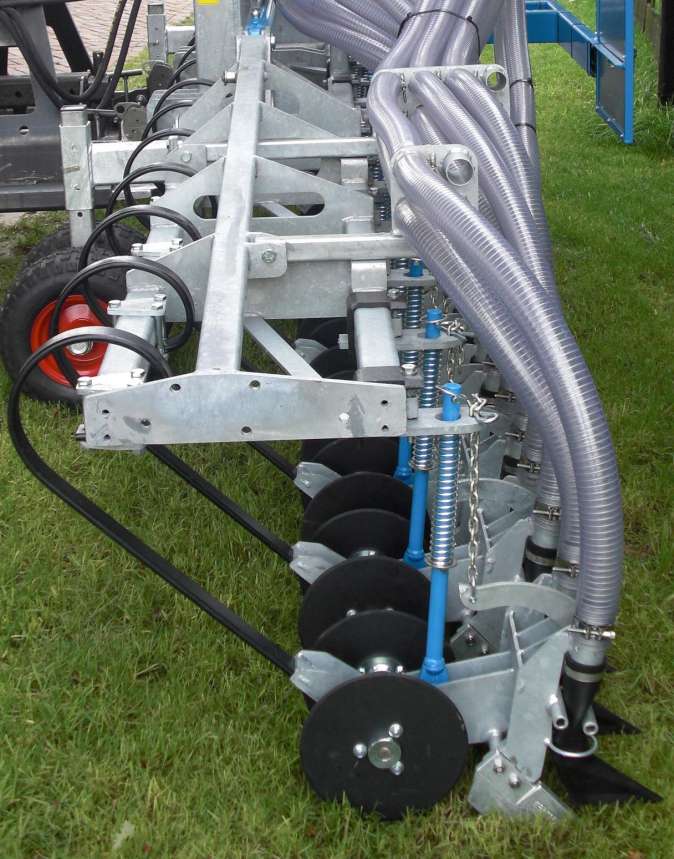

3. Optimal contour adjustment using individually suspended disc pairs
4. One Alrena precision macerator
5. Targeted slurry application using specialized rubber nozzles
6. Track tracing possible even with very tight radius
7. Very precise distribution using an Alrena precision macerator with 50mm drain hoses
8. The automatic Drop Stop system prevents soiling of headlands, streets and agricultural roads
9. Fully sealed storage of discs means minimum maintenance is required

Technical Data Disc Injector 6.4 Metre

– Working width 6.4 m

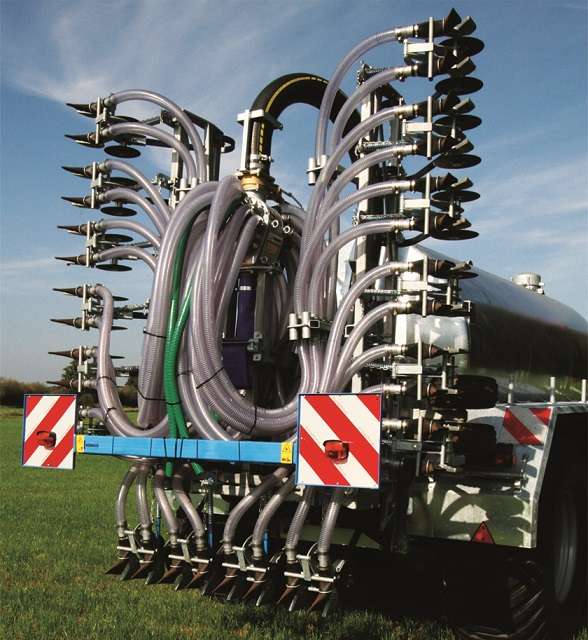

– Transport width 2.8 m
– Weight 1050 kg
– Hose distanc 20 cm
– No. of outlets 32

Technical Data Disc Injector 7.2 Metre

– Working width 7.2 m
– Transport width 2.8 m
– Weight 1150 kg
– Hose distanc 20 cm
– No. of outlets 36

Dimensions and designs mentioned are entirely without any
obligation whatsoever and are subject to alternations at any
time without prior notice.
