Ecoline
The new Bomech Ecoline trailing shoe system is designed for precise and reliable slurry application with umbilical systems. Its lightweight yet durable construction makes it easy to handle, while maintaining the quality Bomech is known for.

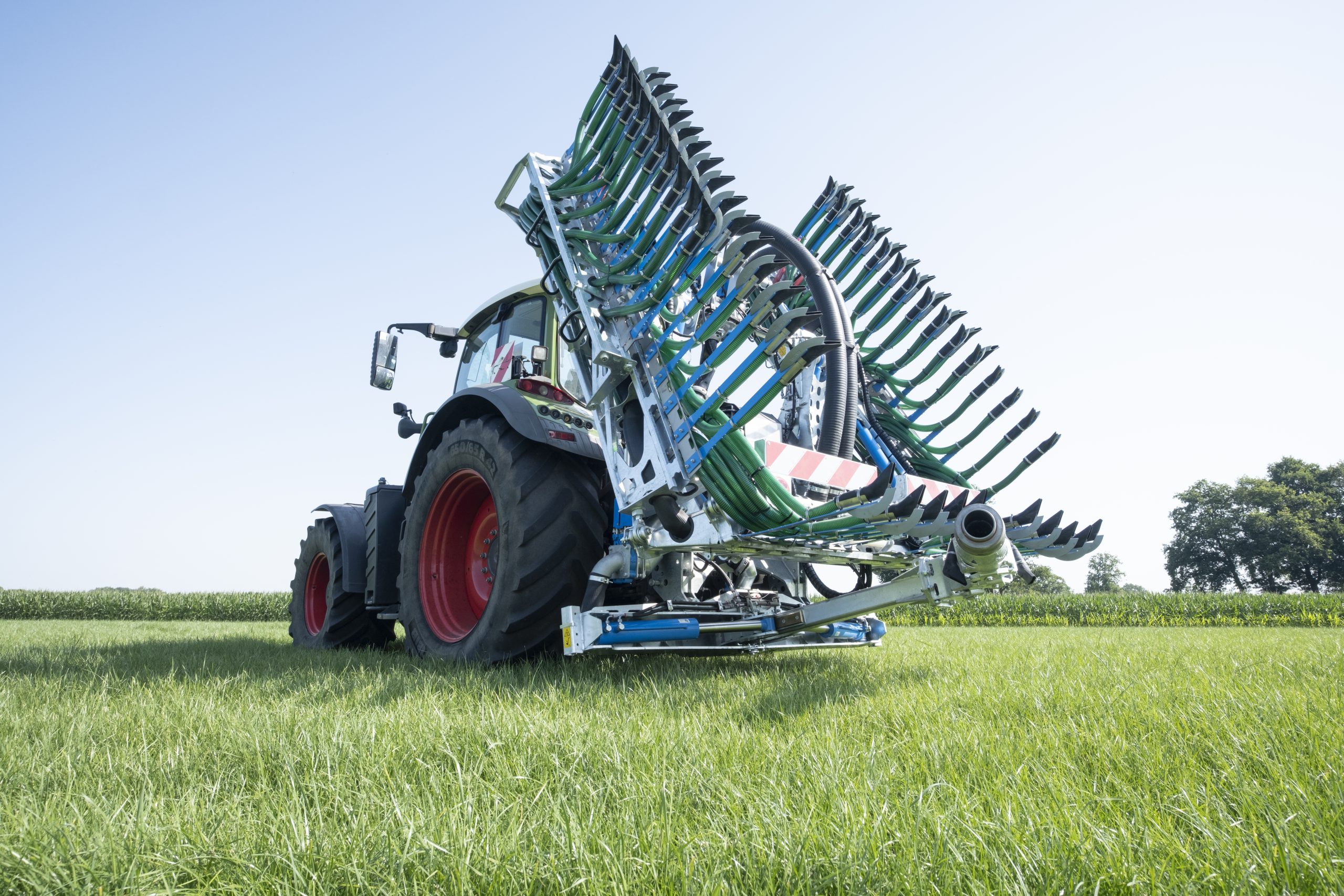

The compact folding system keeps the transport width below 3 m, making road transport simple. Available in 12 and 15 m working widths, with 25 cm hose spacing (optional 18.75 cm).
Smooth turning and low stress
The Ecoline’s swivel tube minimises forces on the tractor, machine, and grassland. With the optional hydraulic swivel tube, the drag hose stays close to the tractor, making reversing and turning easy. The low pivot point and vertical lift further reduce stress on your system and your soil. An optional 170-degree rotatable and fully automatic swivel tube is available.
Collision protection
The 15 m version of the Ecoline series has a 1.5 m collision protection on both sides. This will lower the chance on big damages and will ensure a high and long-lasting durability.
Highlights of the Ecoline:
- Available in working widths of 12 and 15 metres
- Transport width < 2.99 m
- Transport height < 3.99 m
- Hose distance 25 cm, optionally 18.75 cm possible
- Low own weight
- Optimal ground tracking through an integrated level adjustment system
- All hydraulic cylinders have end cushioning for maximum performance and gentle folding
- Option for vertical lifting
- Two Alrena precision distributors with rotating cutting system
- Standard equipped with a robustly designed swivel tube
- Optional: 170-degree rotatable and fully automatic swivel tube
- The 15 m version has a 3-dimensional impact protection of 1.5 m left and right
- Half-side section control is optional (hydraulic or pneumatic)
- Equipped as standard with a hydraulic valve to blow off the first liquid manure
- Control with Bomech I-Control
- Possibility to spread slurry at different working widths in combination with the Alrena ASC section control system
- Prepared for 3-point linkage, category 3
