Evolution Eco

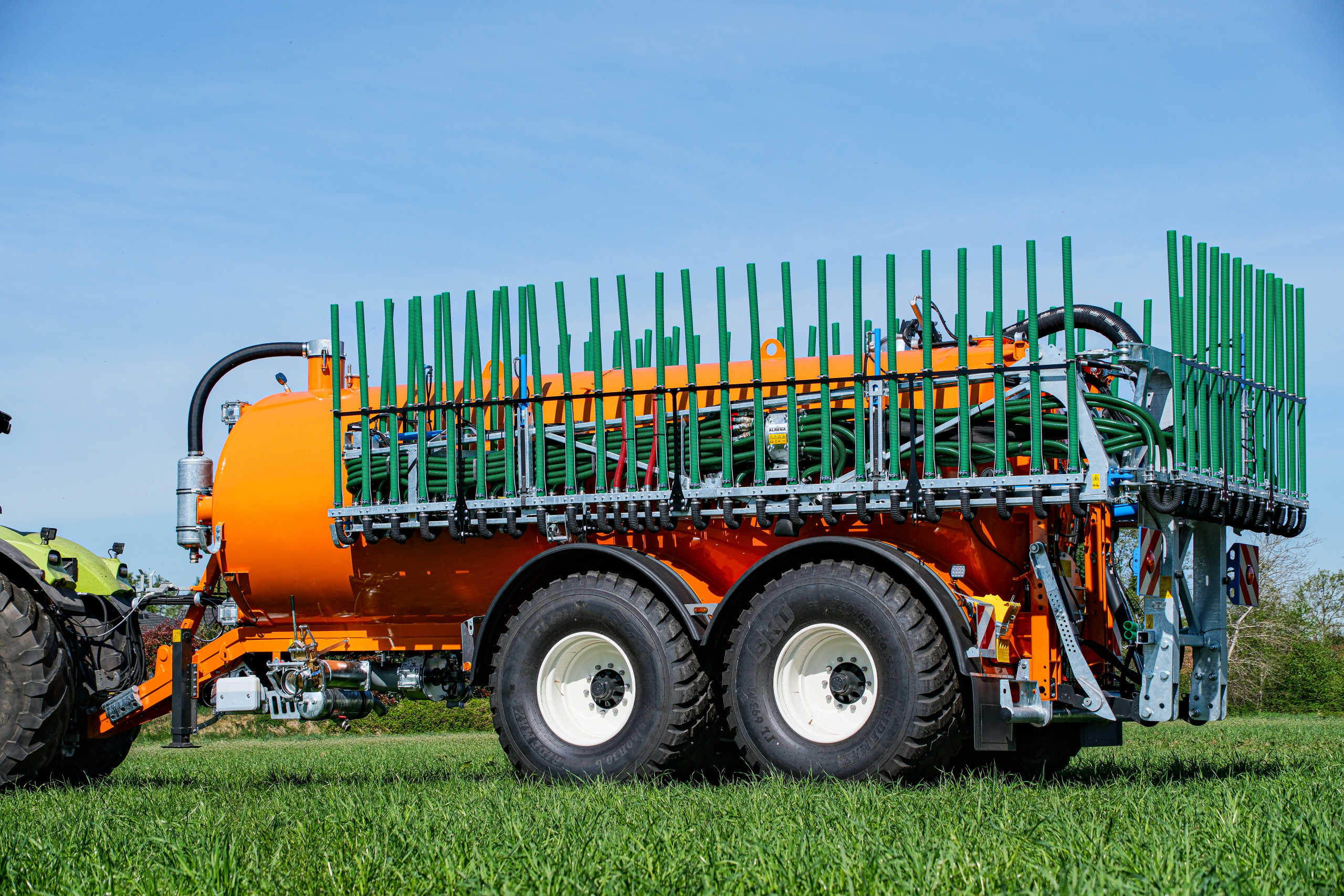

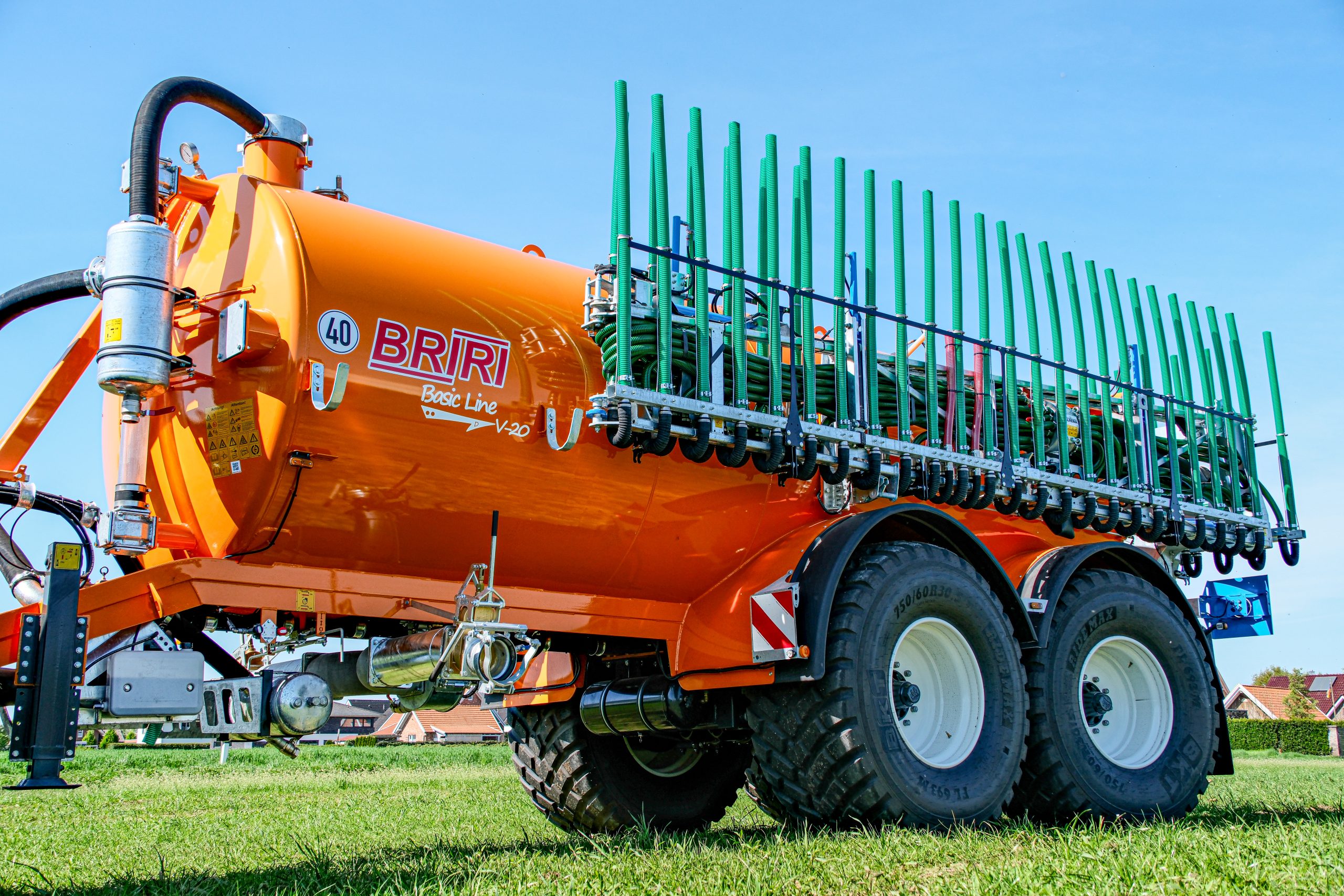

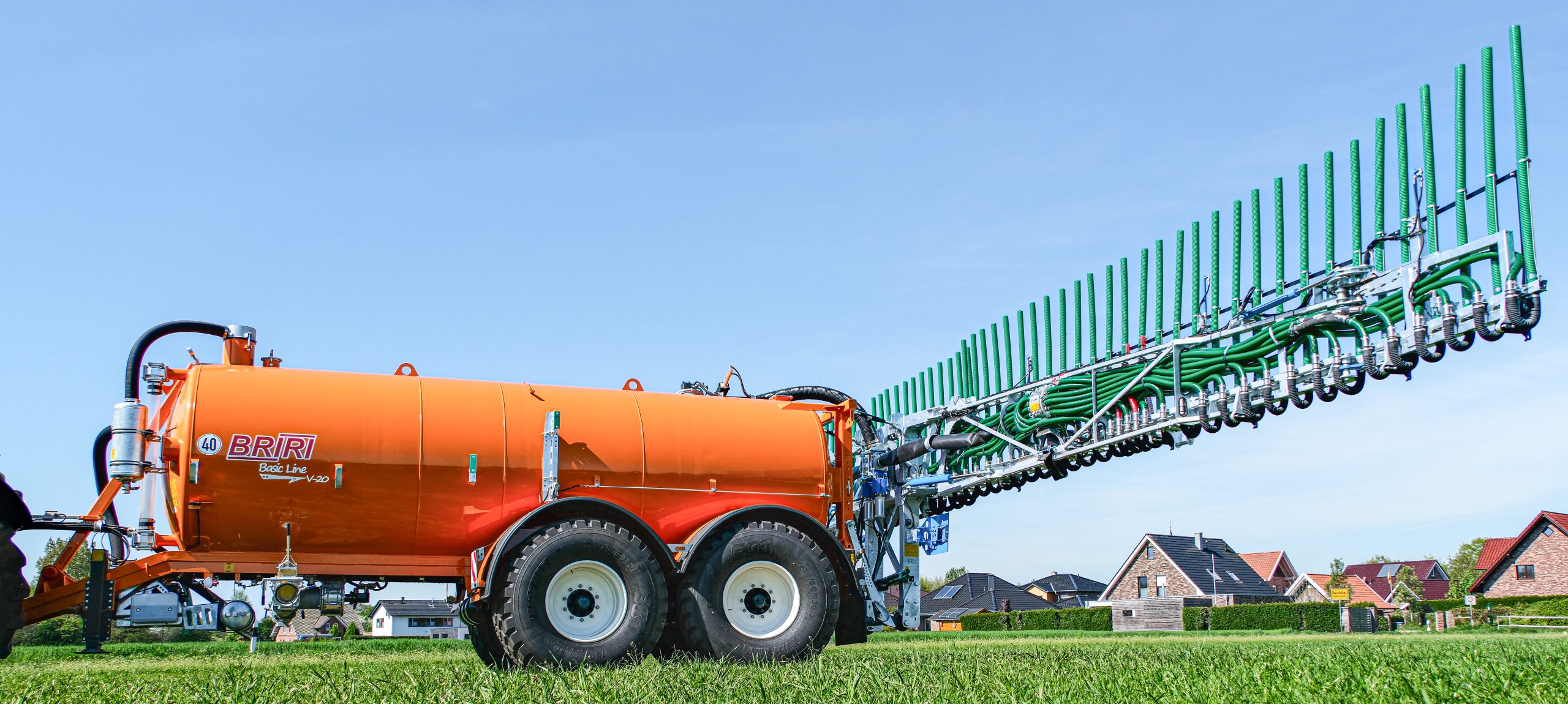

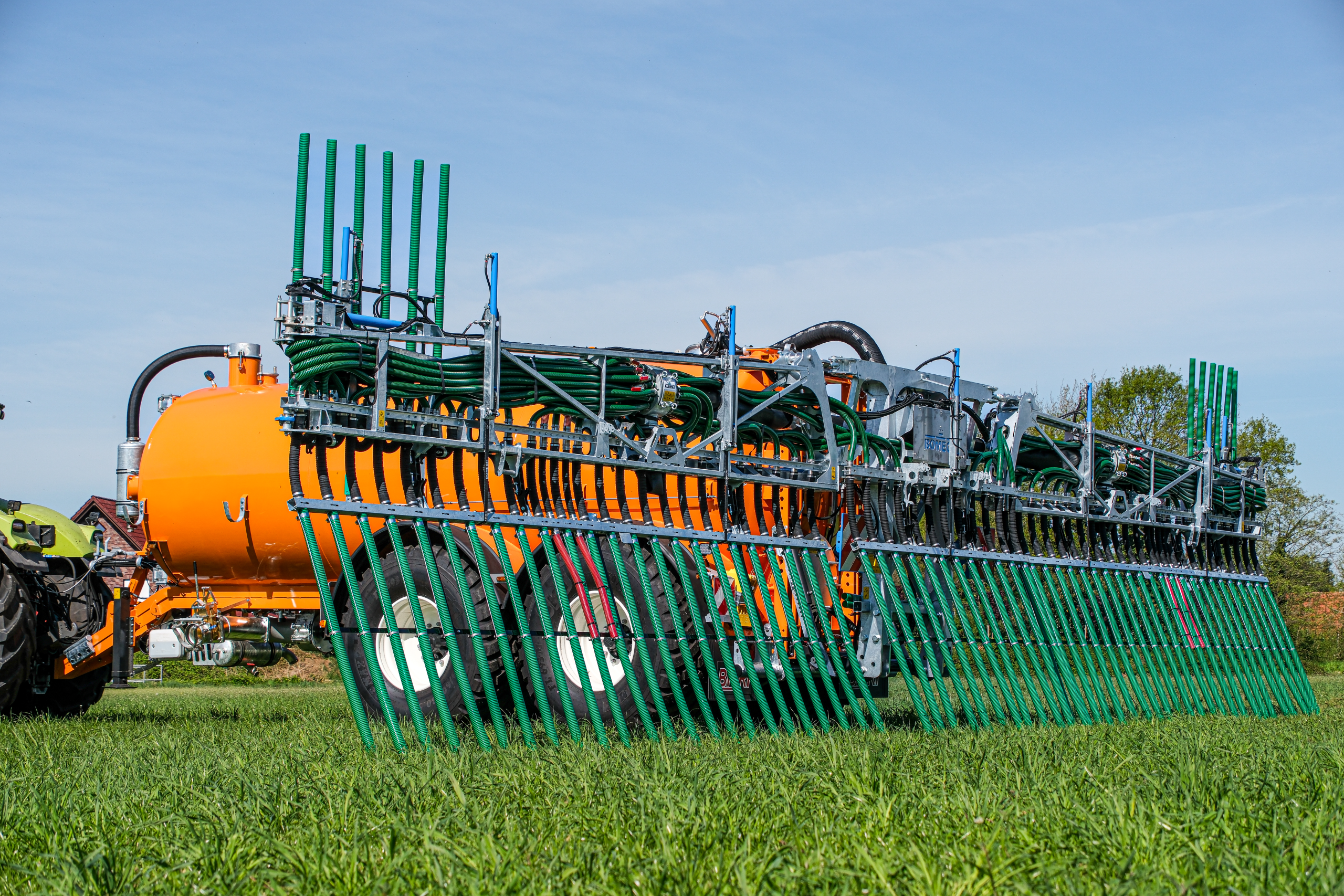

Bomech is responding to the growing international demand and is presenting a new series of dribble bar systems with working widths of 12, 15 and 18 m. Flexibility is guaranteed: the 18-metre system can also be operated at 15 m thanks to an additional folding mechanism. All models ensure precise distribution with a hose spacing of 25 cm and 50 mm outlets. The 18 m version is equipped as a standard with a 1.5 m collision protection. In addition, the new line comes with a patented drop-stop system that makes it possible to lift and lower the hoses in any position.

Alrena macerators
The new dribble bar series is equipped with 2 Alrena macerators on each dribble bar. This not only guarantees a large flow rate, but also minimises the V-formation at the start of the slurry spreading. In addition, the Alrena macerator has many advantages such as very low wear, the ability to run dry without slurry and a very high distribution accuracy due to the patented air flow system.

Mounting to tanker The Evolution Eco can be fitted directly onto a 3- or 4-point linkage. It is also possible to mount the dribble bars directly to the frame of the tanker, without a hydraulic linkage.

Highlights of the Evolution Eco

  1. Standard hose distance 25 cm
  2. Hose outlet diameter 50 mm
  3. Collision protection on 18-metre version of 1.5 m on both sides
  4. Patented drop-stop system with folding cylinders
  5. Transport width 2.99 m for tank diameters up to 2,200 mm (mounting on wider tankers possible)
  6. Various section control options available (mechanical, hydraulic or with the Alrena ASC system)
  7. Optimal hose guidance for narrow transport width
  8. All hydraulic cylinders have end cushioning for maximum performance and gentle folding
