Farmer

Available Trailing Shoe systems:
– Farmer 12 meter
– Farmer 15 meter

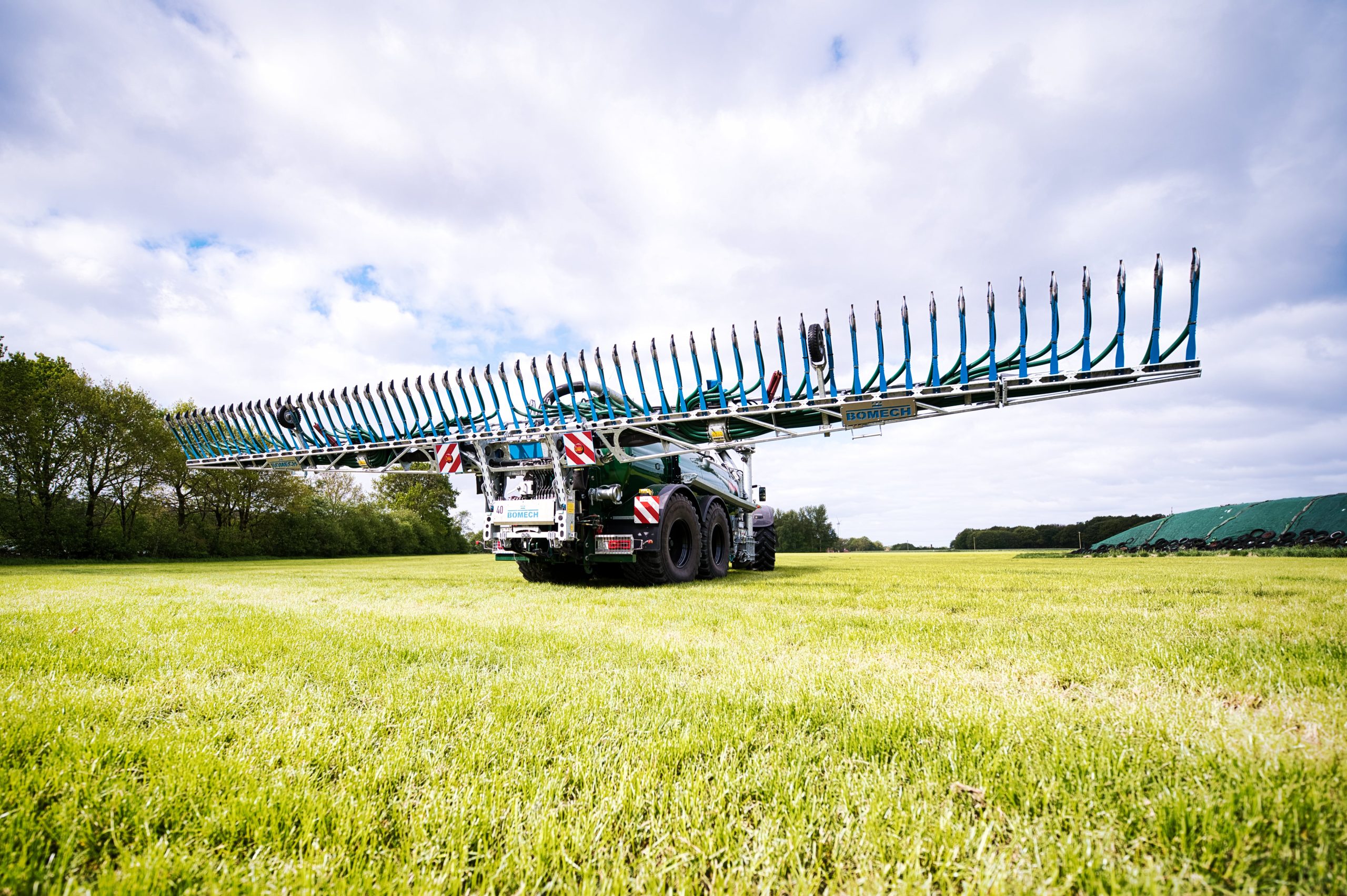

The Farmer trailing shoe system is a stable and low weight slurry spreader. The Farmer is available with a working width of 12 m and 15 m. The compact design and a centre of gravity located close to the slurry tank means that the Farmer is well suited for retrofitting. The Farmer can be mounted directly onto the slurry tank, or onto any 3-/4-point linkage.

Two Alrena precision macerators with rotating cutting knives and stone / debris traps ensure precise distribution of the slurry. Hoses are not bent during lifting or folding, and all cylinders have end cushioning. Both features guarantee maximum performance and durability.

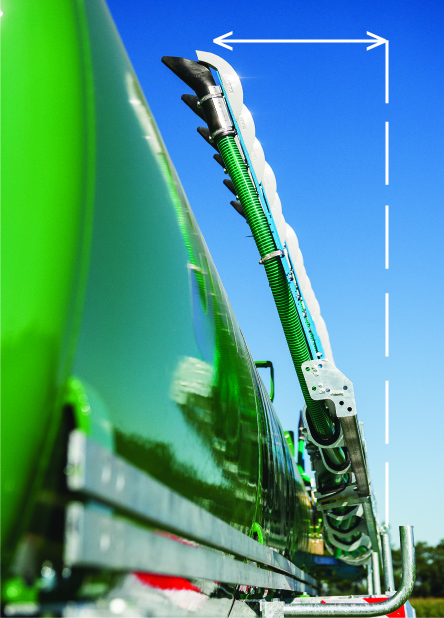

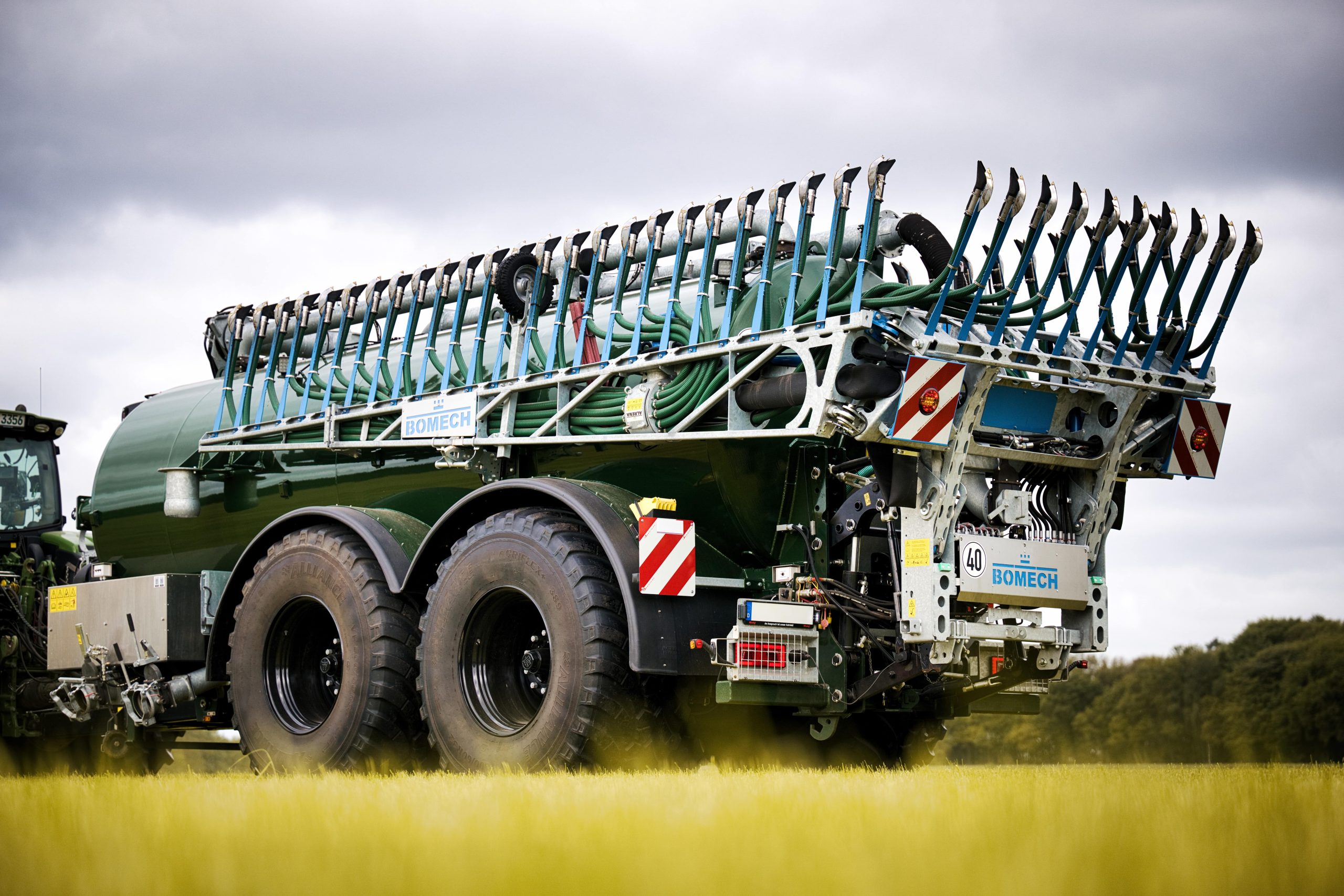

The Bomech-Farmer folds compactly along the tanker so that the centre of gravity of the trailing shoe distributor in the transport position comes closer to the front. When folding, the outlets are raised first so that absolutely no soiling of headlands, streets and agricultural roads can take place. The basic hydraulics and standard version requires 3 double-acting control units (3DA). Optionally, the I-Control as well as the E-Control is possible with this trailing shoe distributor. For more information on all possible Bomech controls, check the technical data on the last pages of this brochure.

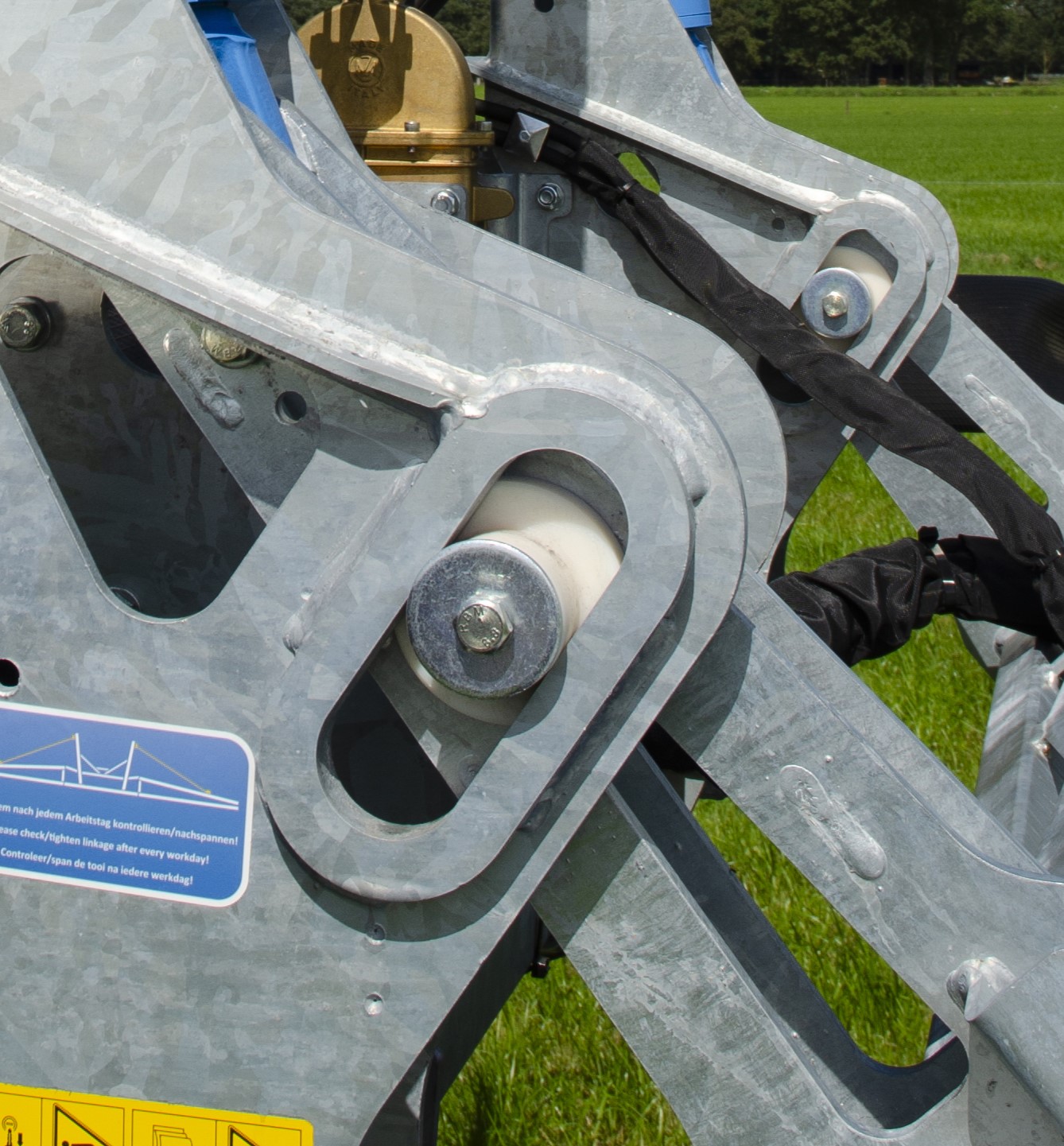

Double pendlesystem
The Farmer has an integrated pendlesystem in the midframe and in both arms. When the trailing shoe is on the ground, the cylinders are in the floating position and the arms can move freely. Because of this the distributor can adjust to any soil conditions. In combination with individually spring-mounted trailing shoes, the distributor adapts to the most difficult terrain conditions.

Farmer features:

1. Transport width 2.99 m
2. Total height 3.40 m
3. Tank diameter max 2.25 m
4. Very light weight
5. Automatic level adjustment on the middle frame and on both side arms for optimal contour adjustment
6. All hydraulic cylinders have end cushioning for maximum performance and gentle folding
7. The Farmer 15 m is secured with an impact protection system
8. Two Alrena precision macerators with rotating cutting system
9. Simple folding alongside the vehicle
10. Hoses are not bent during lifting or folding and are thus long-lasting
11. Mechanical or hydraulic automatic section control is optional
12. It is possible to assemble the electro-hydraulic control block of the I-Control in advance
13. The E-Control with sequential operation is possible, requires only 1xDA
14. The trailing shoes can be raised, preventing soiling of headlands, streets and agricultural roads
15. Prepared for 3-/4-point linkage, category 2 or 3
16. Also possible to use in umbilical systems
17. Only 35 litres of hydraulic oil required
18. Can drive up to 20 km/h in working position
19. Easy installation for almost every tank
20. Hose distance standard 25 cm. Optionally, a hose distance of 18.75 cm is also possible

Technical Data Farmer 12 Meter

– Working width 12 m
– Transport width 2.99 m
– Weight 1450 kg
– Hose distance 25 cm
– No. of outlets 48

Technical Data Farmer 15 Meter

– Working width 15 m
– Transport width 2.99 m
– Weight 1625 kg
– Hose distance 25 cm
– No. of outlets 60

Dimensions and designs mentioned are entirely without any obligation whatsoever and are subject to alternations at any time without prior notice.
