Farmer GEN. II

Available in:
– 18 meter

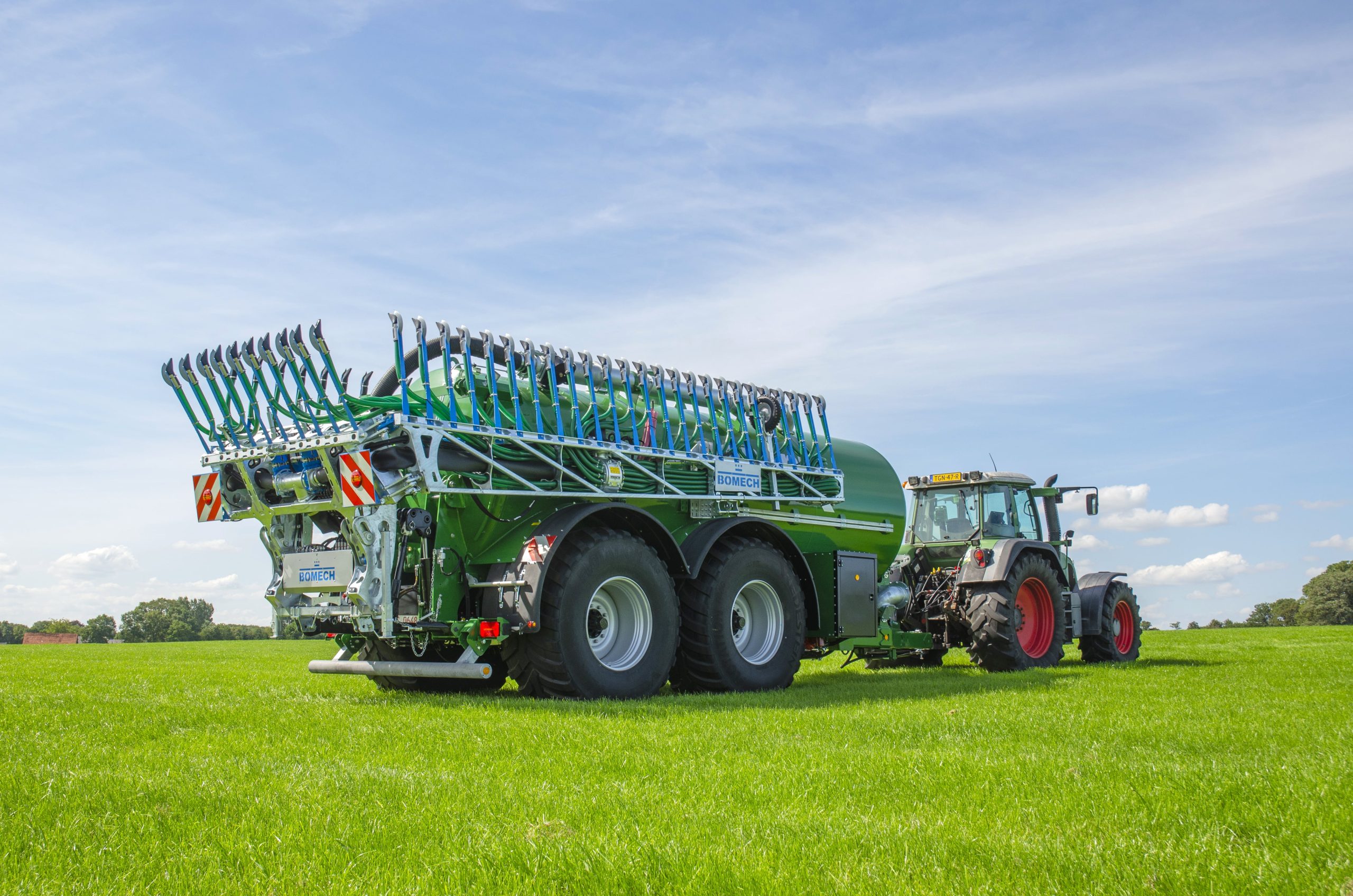

The Farmer series was already available in working widths of 12 m and 15 m, and now this is being extended with an 18-metre variant. A newly developed strong main frame including a wing suspension by means of a steel cable system makes the 18 m working width available. The compact design and a centre of gravity close to the slurry tanker also makes the Farmer GEN. II 18 very suitable for retrofitting. The Farmer can be mounted directly on the slurry tanker or on a 4-point linkage.

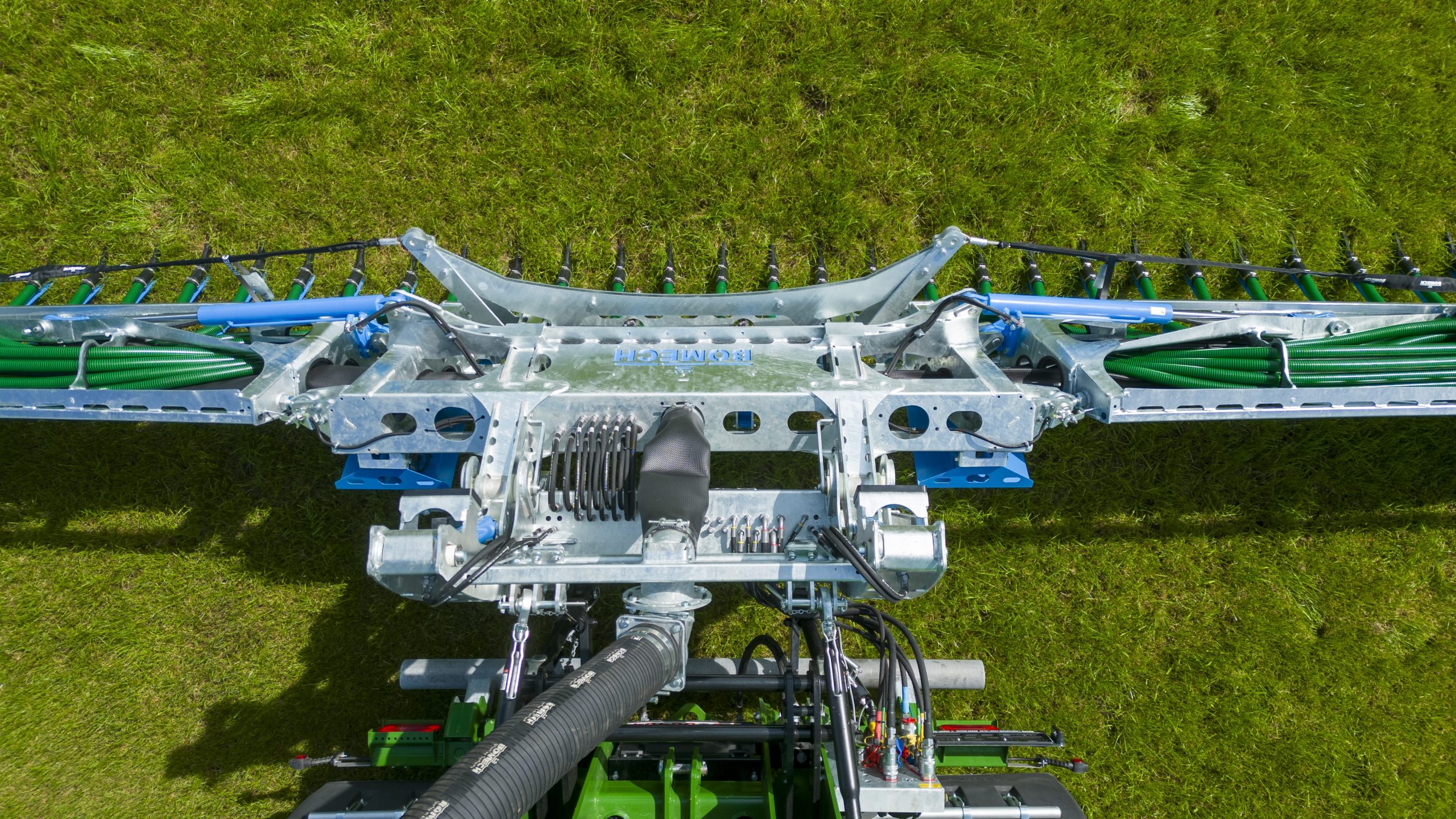

Wing suspension
The ‘wing suspension system’ by means of a steel cable system works automatically and there are no special prerequisites or requirements for the slurry tank. This system reduces the static and dynamic stress of the wide booms on the frame and on the hydraulic cylinder by at least 50%. The optimal interplay between the forces, which are simultaneously used as a counterweight, boosts the stability and durability of the Farmer GEN. II 18. Hydraulic folding arm extension The Farmer GEN. II 18 has an optional 1.5 m long hydraulically folding arm extension on each side. This reduces the transport length so that the Farmer GEN. II 18 can also be attached to shorter tankers. With these folding arm extensions, the working width can also be reduced from 18 m to 15 m.

Features of the Farmer Gen. II

1. Transport width 2.99 m
2. Total height 3.40 m
3. Tank diameter max 2.25 m
4. Very light weight
5. Automatic level adjustment on the middle frame and on both side arms for optimal contour adjustment UV-beständiges Schlauchmaterial
6. All hydraulic cylinders have end cushioning for maximum performance and gentle folding
7. The Farmer GEN. II 18 m is secured with an 3-dimensional impact protection system of 1.25 m
8. Two Alrena precision macerators with rotating cutting system

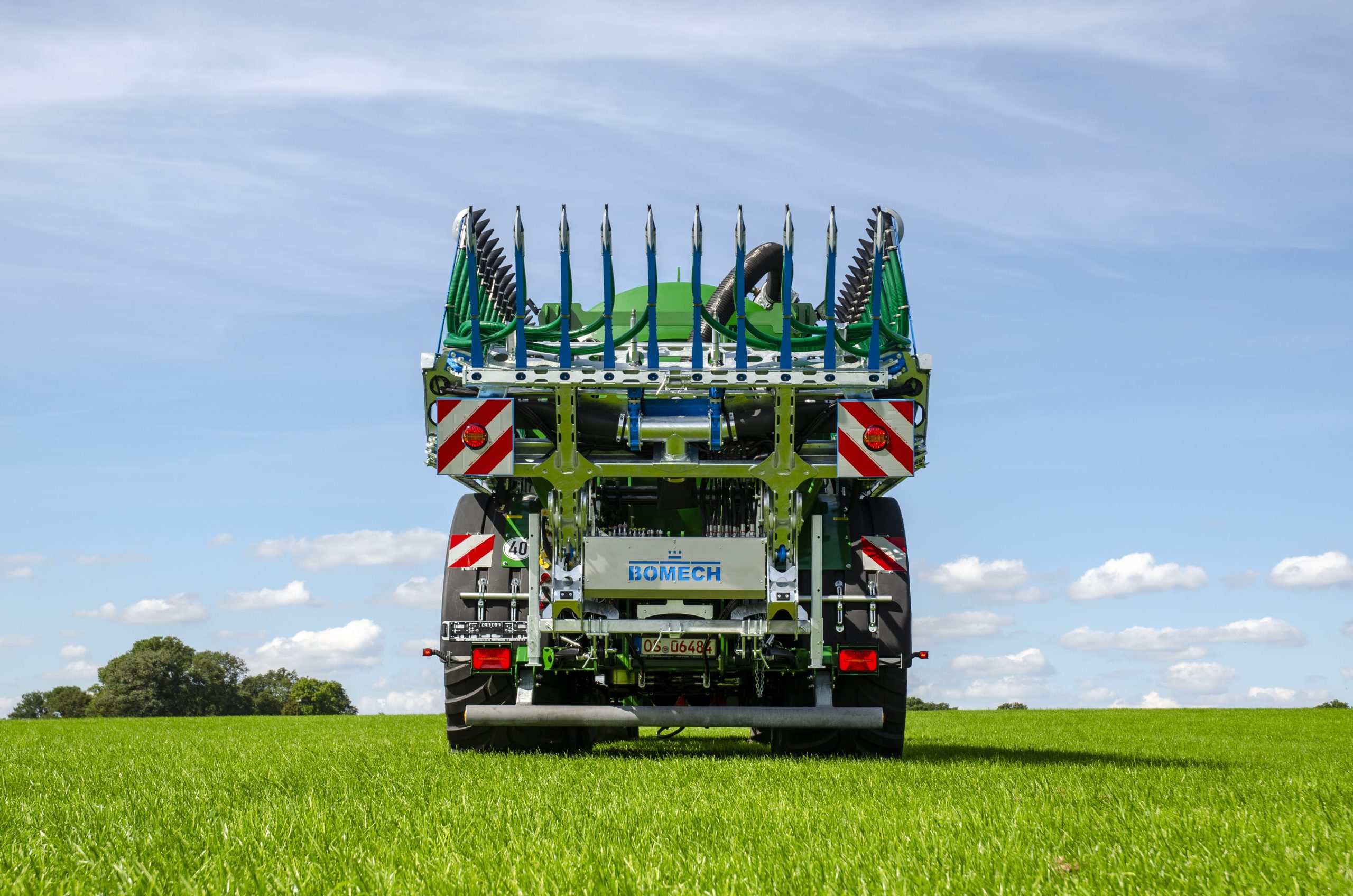

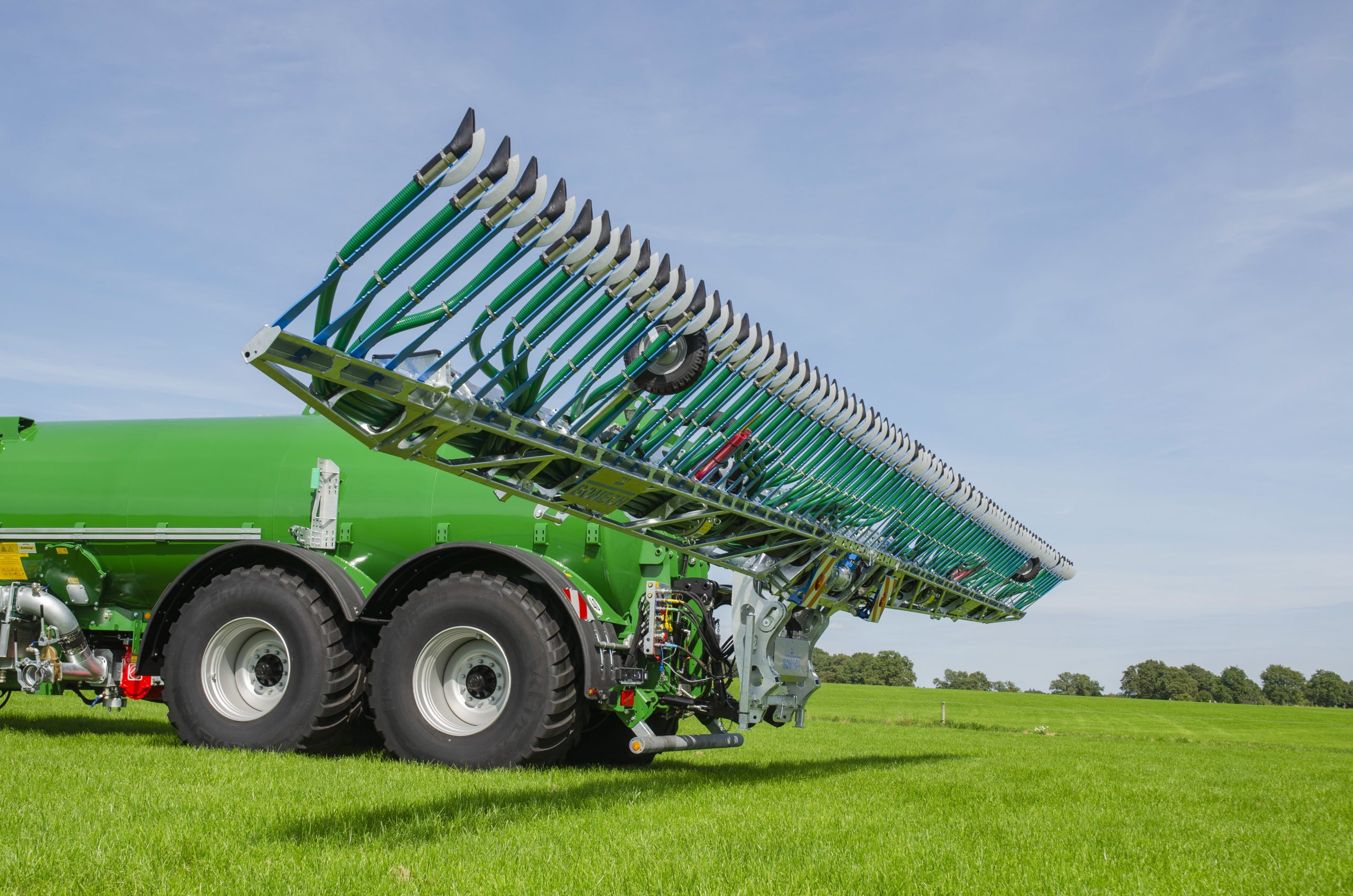

9. Simple folding alongside the vehicle
10. Optionally, a hydraulic arm extension of 1.5 m can be installed for mounting on shorter tankers
11. Hoses are not bent during lifting or folding and are thus long-lasting
12. Mechanical or hydraulic automatic section control is optional
13. It is possible to assemble the electro-hydraulic control block of the I-Control in advance
14. The E-Control with sequential operation is possible, requires only 1xDA
15. The trailing shoes can be raised, preventing soiling of headlands, streets and agricultural roads
16. Possibility to spread slurry at 15 m in combination with the Alrena ASC-system
17. Only 35 litres of hydraulic oil required
18. Prepared for 4-point linkage, category 2 or 3
19. Can drive up to 20 km/h in working position
20. Easy installation for almost every tank
21. Hose distance standard 25 cm. Optionally, a hose
distance of 18.75 cm is also possible

Technical data

– Working width 18 m
– Transport width 2.99 m
– Weight 2000 kg
– Hose distance 25 cm
– Number of outlets 72

Patented system.
Dimensions and designs mentioned are entirely without any
obligation whatsoever and are subject to alternations at any
time without prior notice
