Flex

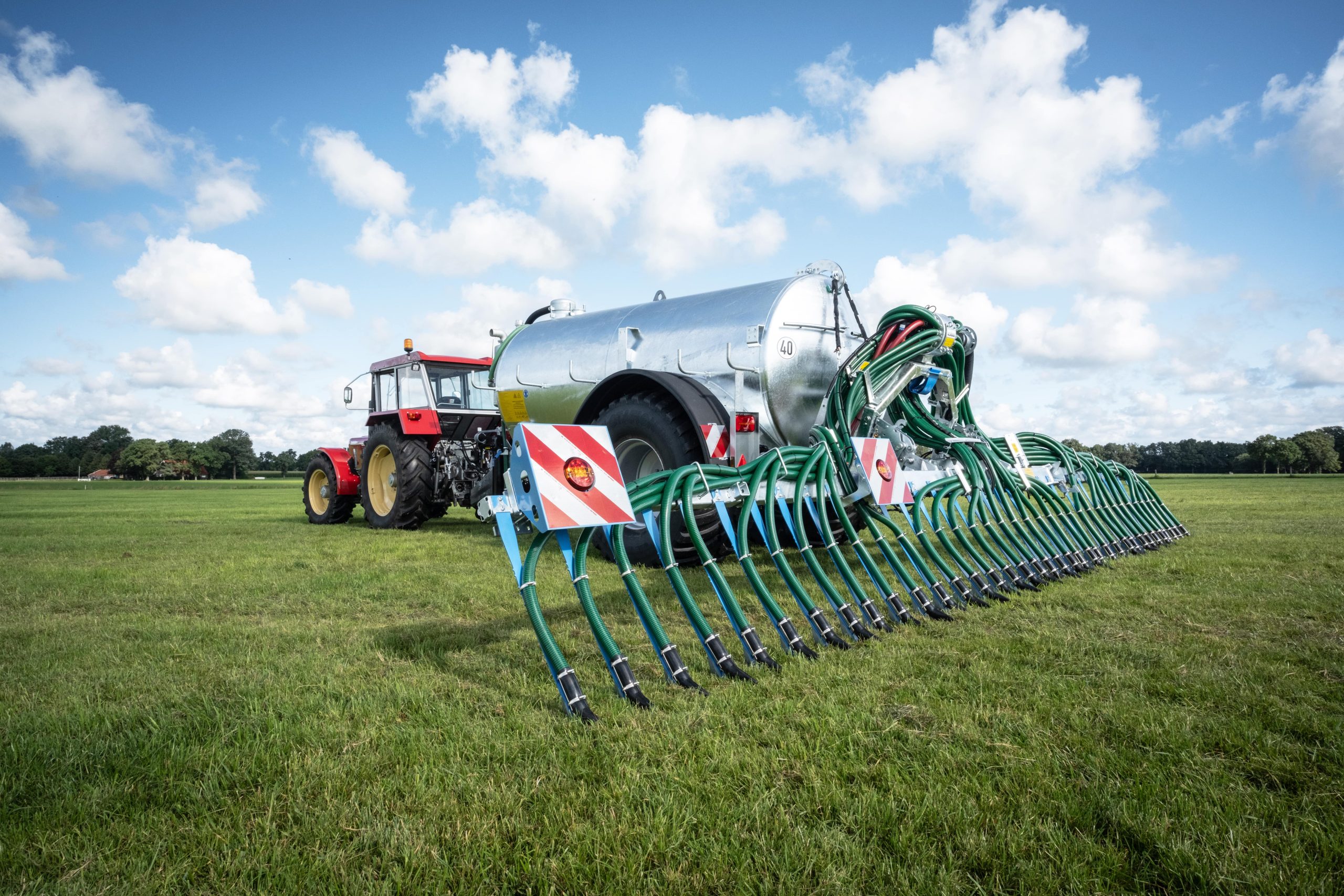

The Flex trailing shoe system is a compact and lightweight slurry spreader available in working widths of 7.5 m and 9 m. The system is easy to mount on any tank and is also available for self-propelled vehicles. The lightweight system makes it ideal for retrofitting tanks.

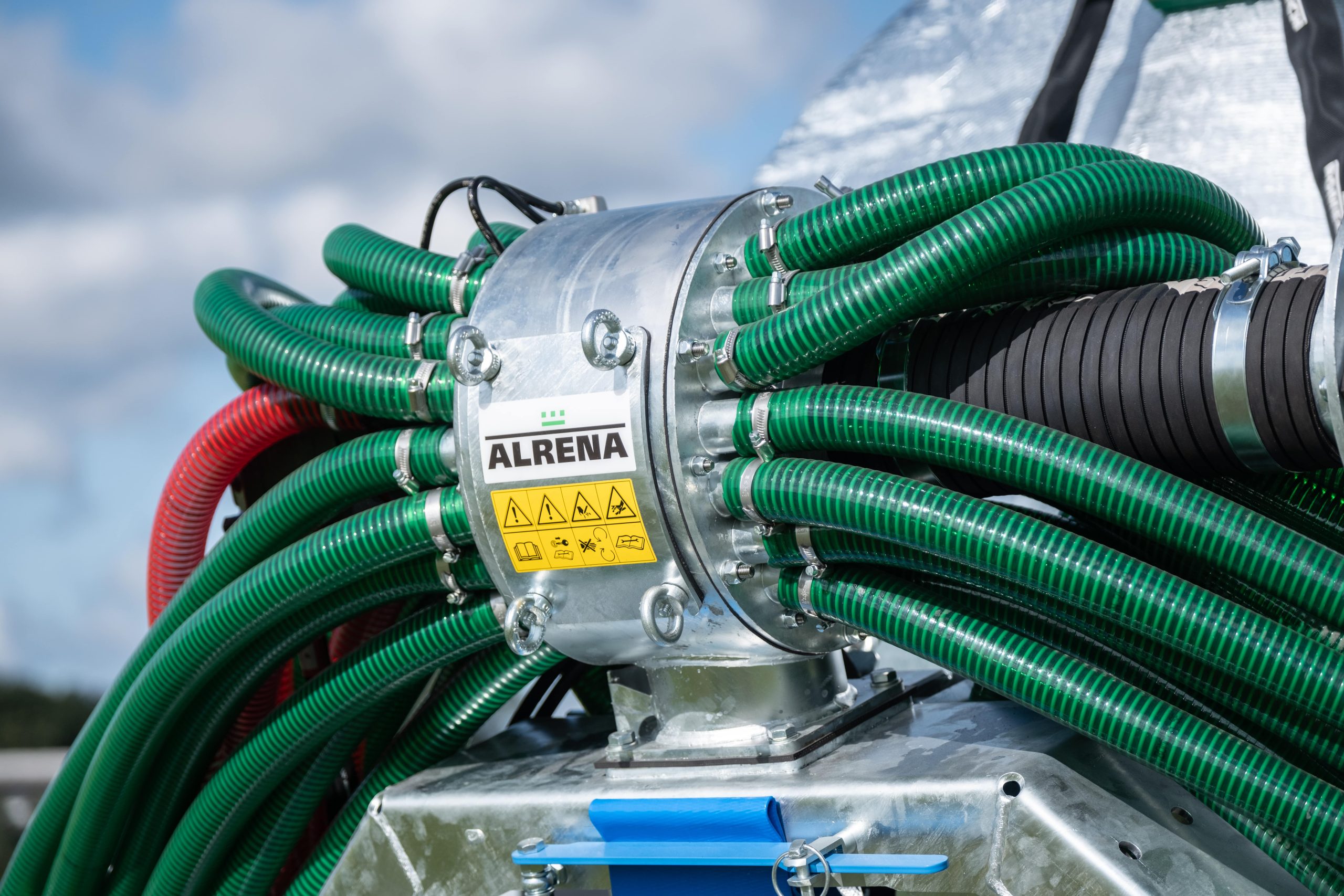

The integrated automatic level adjustment system allows the trailing shoes, each with its own suspension, to adjust to the landscape. One Alrena precision macerator, with a rotating cutting system and a controlled and guaranteed air flow, ensures precise distribution of the slurry.

Suitable for self-propelled tankers

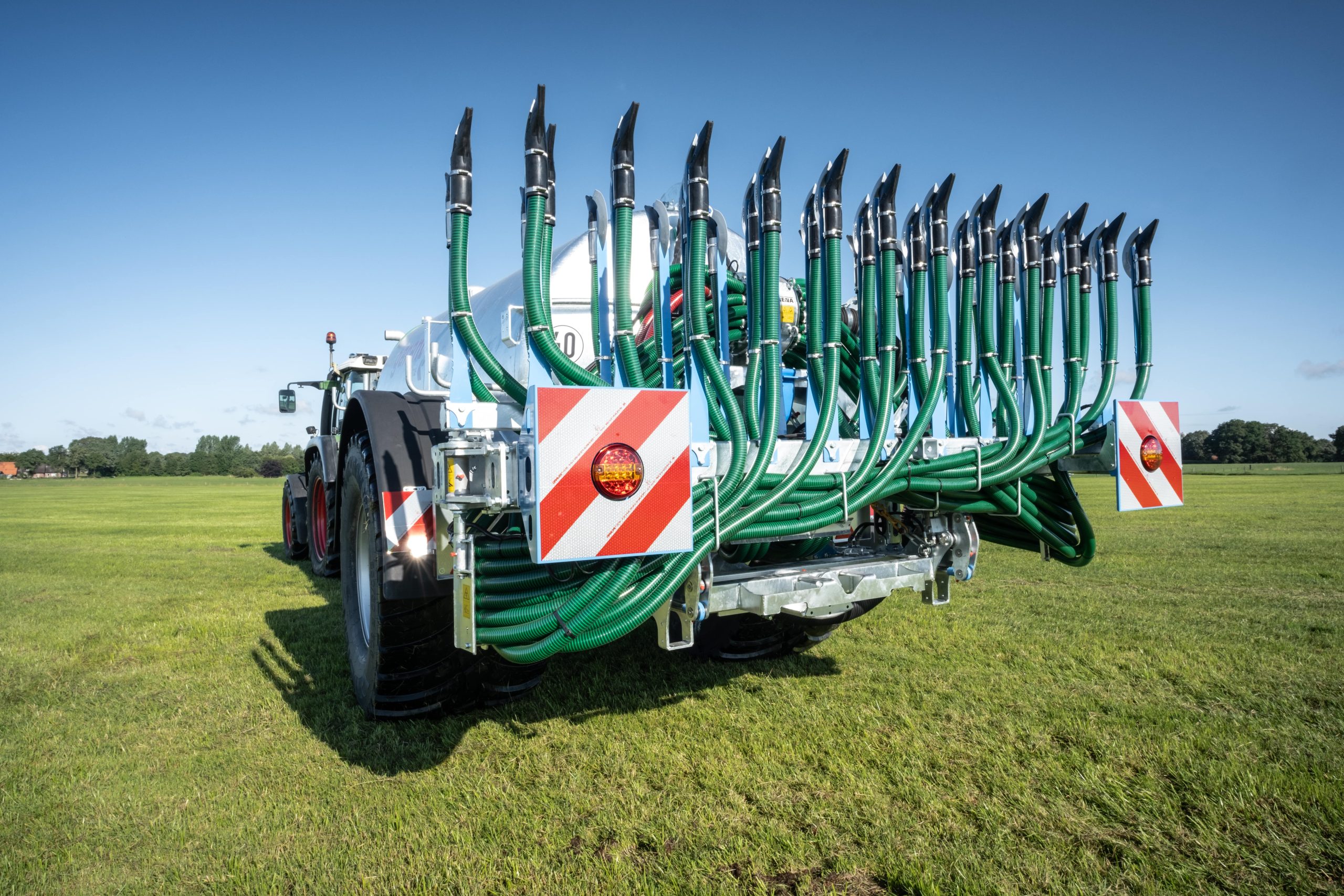

The Bomech-Flex folds compactly behind the tanker so that this type of trailing shoe distributor can be attached regardless of the diameter of the tanker. With the 7.5 m working width, the Flex has a transport width of only 2.55 m. When folding, the outlets are folded up first, so that absolutely no soiling of headlands, streets and agricultural roads can take place. The basic hydraulics and standard version requires 3 double-acting control units (3DA). Optionally, the I-Control as well as the E-Control is possible with this trailing shoe distributor. For more information on all possible Bomech controls, check the technical data on the last pages of this brochure.

Flex features:

1. Transport width only 2.55 m at working with of 7.5 m
2. Transport width only 2.99 m at working with of 9 m
3. Total height only 2.35 m
4. Light weight
5. Automatic level adjustment on the middle frame for optimal contour adjustment
6. One Alrena precision macerator with rotating cutting system
7. The E-Control with sequential operation is possible, requires only 1xDA
8. The electro-hydraulic control block of the I-Control can be assembled in advance
9. Folds simply and compactly behind the vehicle

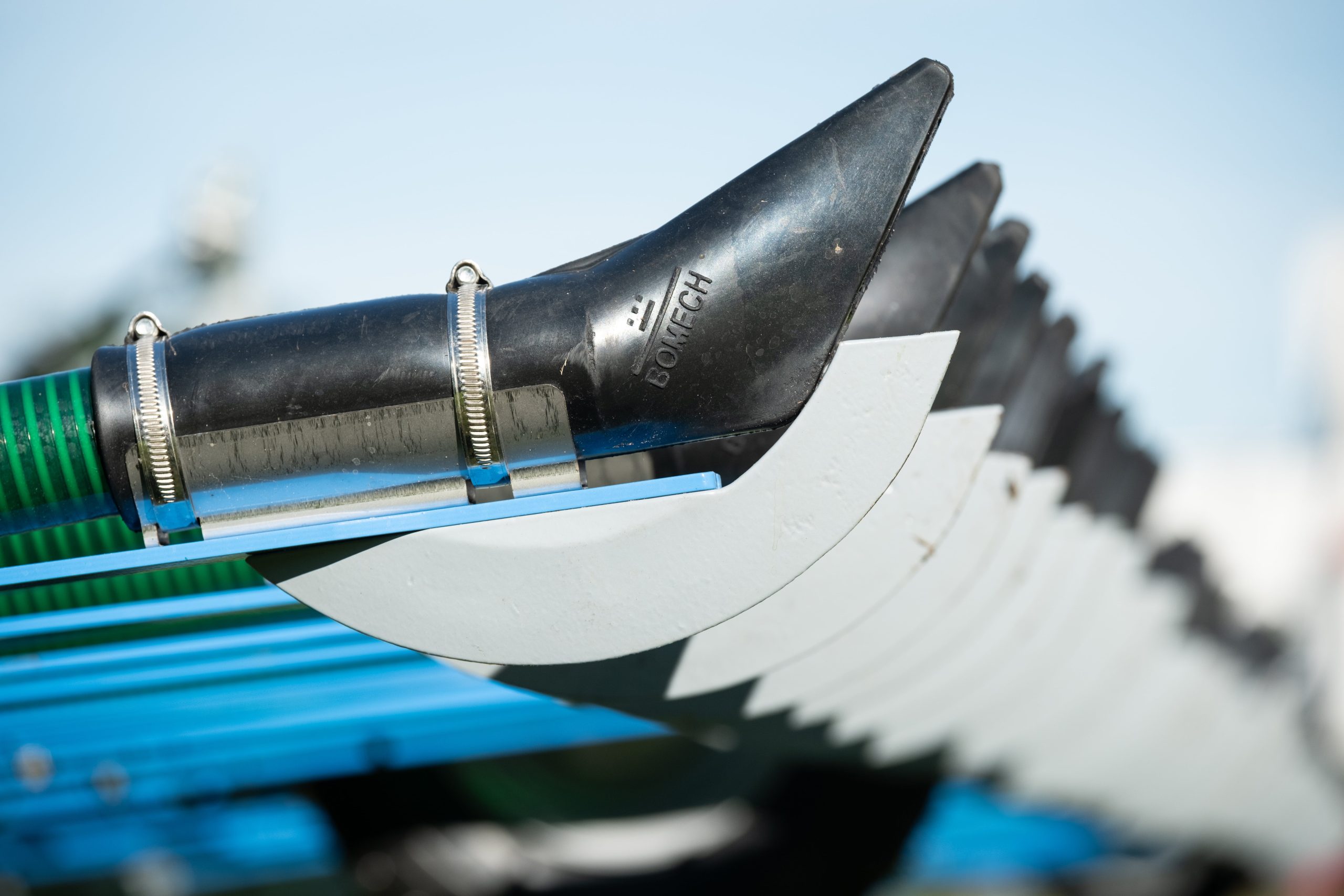

10. The trailing shoes can be raised, preventing soiling of headlands, streets and agricultural roads
11. Also possible for self-propelled vehicles
12. Only 35 litres of hydraulic oil required
13. Can drive up to 20 km/h in working position
14. Easy installation for almost every tank

Technical Data Flex 7,5 meter

– Working width 7,5 m
– Transport width 2,55 m
– Weight 775 kg
– Hose distance 25 cm
– No. of outlets 30 cm

Technical Data Flex 9 meter

– Working width 9 m
– Transport width 2,99 m
– Weight 900 kg
– Hose distance 25 cm
– No. of outlets 36 cm

Dimensions and designs mentioned are entirely without any
obligation whatsoever and are subject to alternations at any
time without prior notice
