Speedy Small

Available in:
– Speedy Small 12 meter
– Speedy Small 15 meter

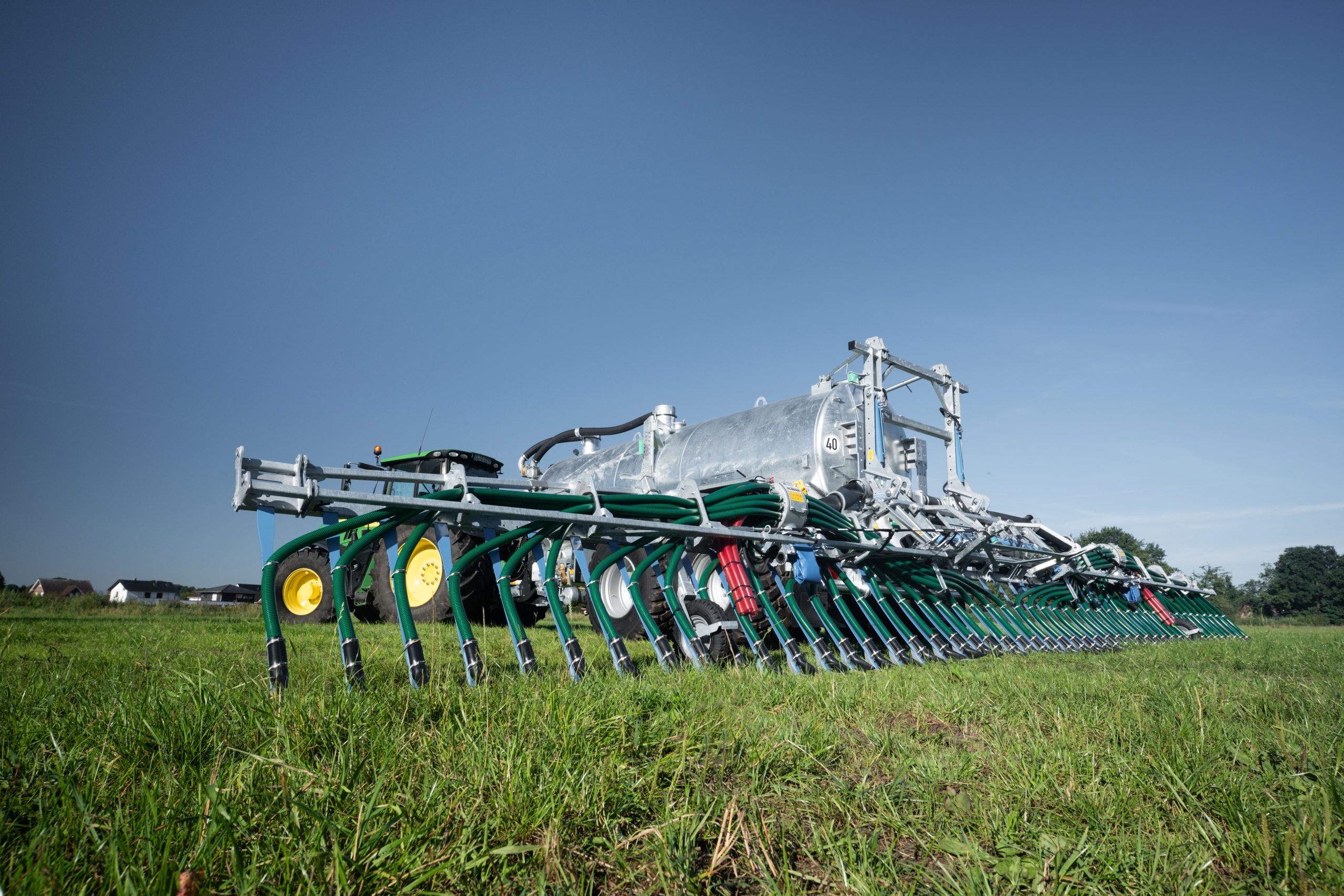

The Speedy trailing shoe system is a very lightweight and affordable series. With a max. tanker diameter of 1.75 m, this series has a transport width of only 2.55 m and a total height of 3.2 m. The Speedy Small is available with a working width of 12 m or 15 m. These top-features make the Speedy Small very compatible with tankers with a smaller diameter and with smaller wheels.

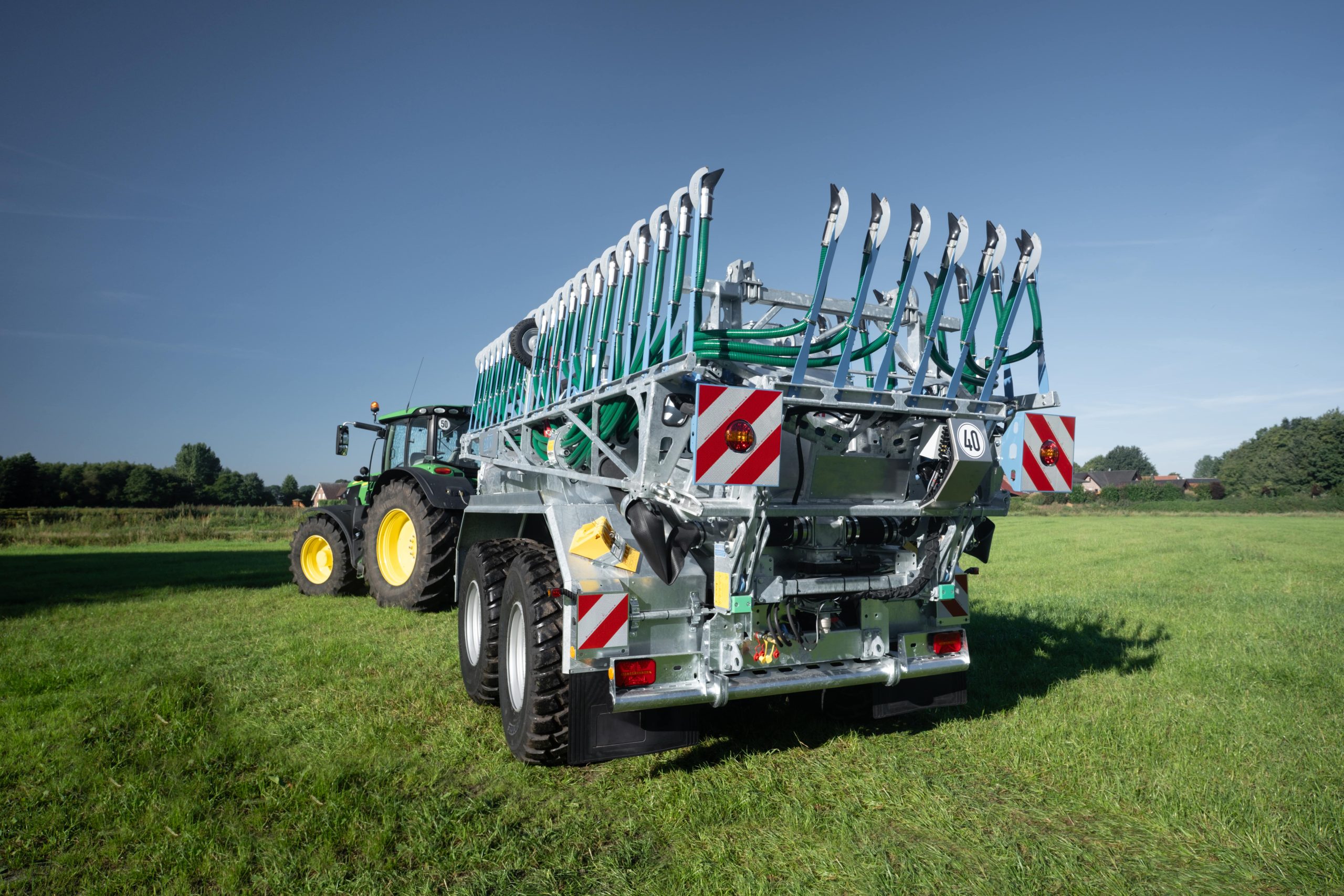

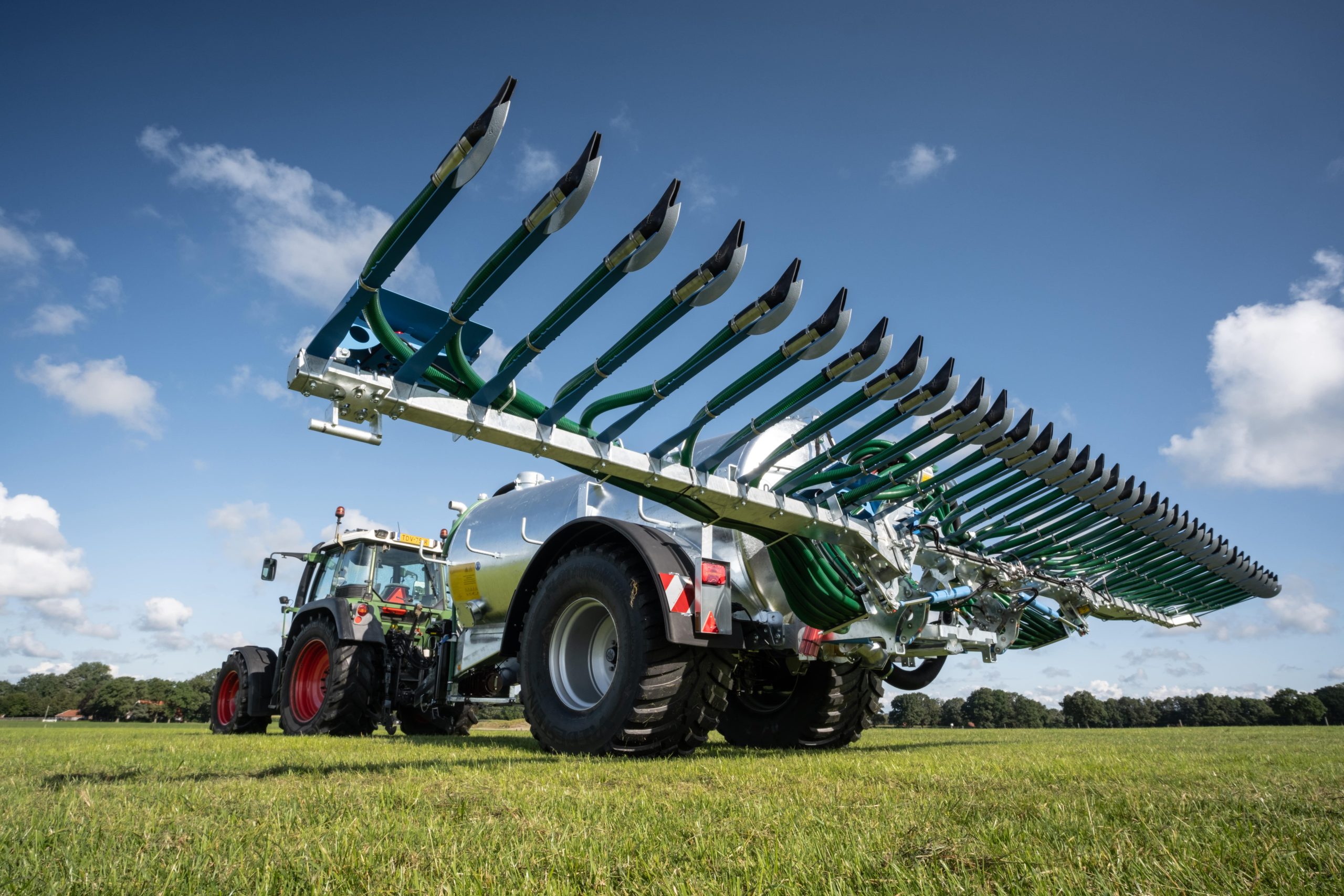

The Bomech-Speedy Small folds compactly along the tanker so that the centre of gravity of the trailing shoe distributor in the transport position comes closer to the front. When folding, the outlets are raised first so that absolutely no soiling of headlands, streets and agricultural roads can take place. The basic hydraulics and standard version requires 3 double-acting control units (3DA). Optionally, the I-Control as well as the E-Control is possible with this trailing shoe distributor.

As a standard, the arm extensions of the 15 m option are secured using a three dimensional impact protection system. Two 5” connections (or optionally one 6”) supply both Alrena precision macerators with slurry for optimal lateral distribution across a working width of 12 m or 15 m

Double pendlesystem and wing suspension
Double pendlesystem and wing suspension The Speedy Small has an integrated pendlesystem in the midframe and in both arms. When the trailing shoe is on the ground, the cylinders are in the floating position and the arms can move freely. Because of this the distributor can adjust to any soil conditions. The distributor also has a “wing suspension”. The static and dynamic forces on the frame and on the hydraulic cylinders are strongly reduced because of it.

Features of the Speedy

1. Transport width 2.55 m
2. Total height 3.20 m
3. Tank diameter max 1.75 m
4. Very light weight
5. Automatic level adjustment on the middle frame and on both side arms for optimal contour adjustment
6. All hydraulic cylinders have end cushioning for maximum performance and gentle folding
7. Transport locking on the cylinders is integrated in the midframe
8. The Speedy Small 15 m is secured with a 3-dimensional impact protection system
9. Two Alrena precision macerators with rotating cutting system
10. Simple folding alongside the vehicle
11. Hoses are not bent during lifting or folding and are thus long-lasting
12. Mechanical or hydraulic automatic section control is optional
13. It is possible to assemble the electro-hydraulic control block of the I-Control in advance
14. The E-Control with sequential operation is possible, requires only 1xDA

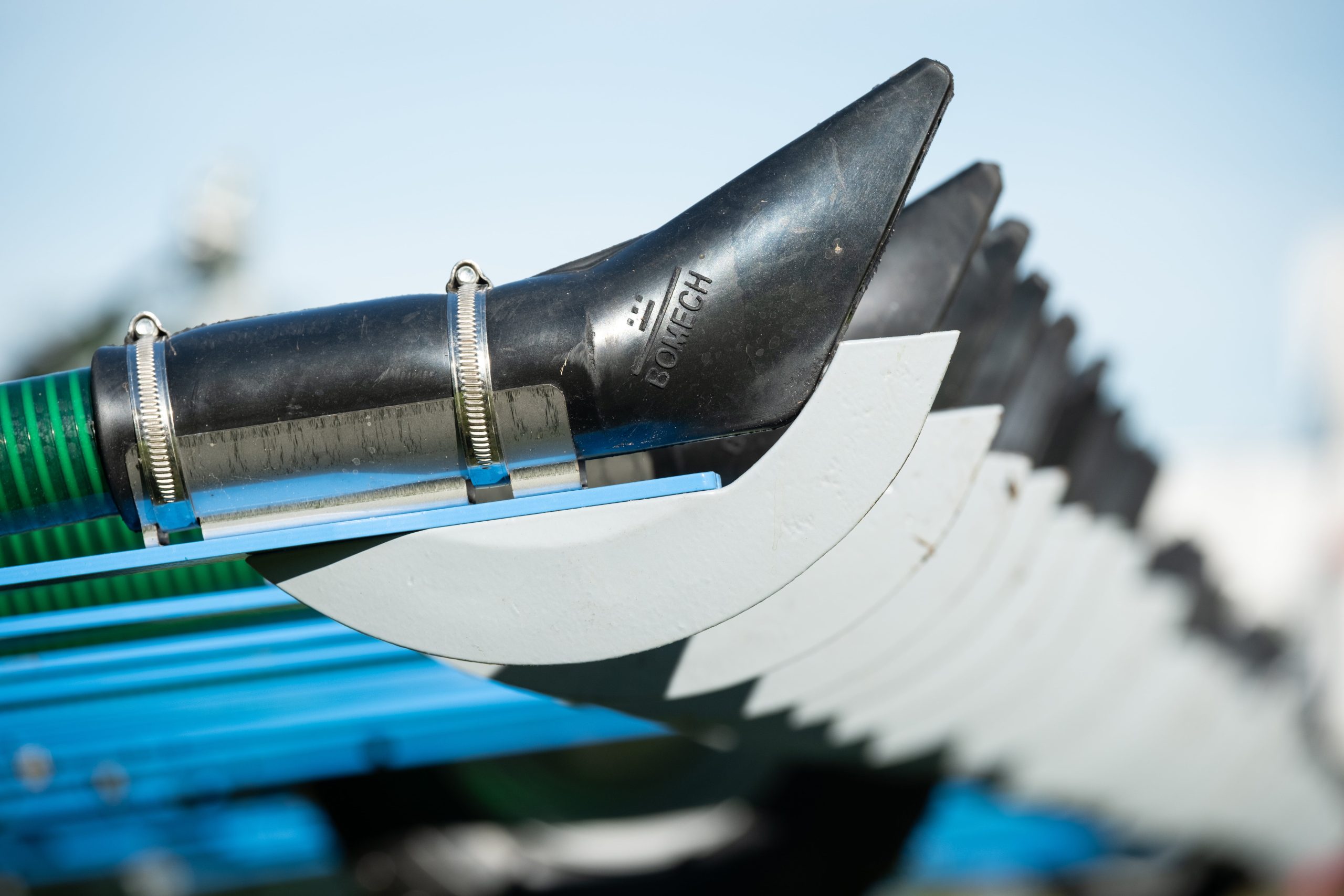

15. The trailing shoes can be raised, preventing soiling of headlands, streets and agricultural roads
16. Only 35 litres of hydraulic oil required
17. Can drive up to 20 km/h in working position
18. Easy installation for almost every tank
19. Hose distance standard 25 cm. Optionally, a hose distance of 18.75 cm is also possible

Technical data Speedy 12 meter

– Working width 12 m
– Transport width 2,99 m
– Weight 1325 kg
– Hose distance 25 cm
– No. of outlets 48

Technical data Speedy 15 Meter

– Working width 15 m
– Transport width 2,99 m
– Weight 1425 kg
– Hose distance 25 cm
– No. of outlets 60

Patented system.

Dimensions and designs mentioned are entirely without any
obligation whatsoever and are subject to alternations at any
time without prior notice.
