Trac-Pack

Available Trailing Shoe systems:
– Trac-Pack 12 metre
– Trac-Pack 15 metre
– Trac-Pack 18 metre
– Trac-Pack 21 metre
– Trac-Pack 24 metre

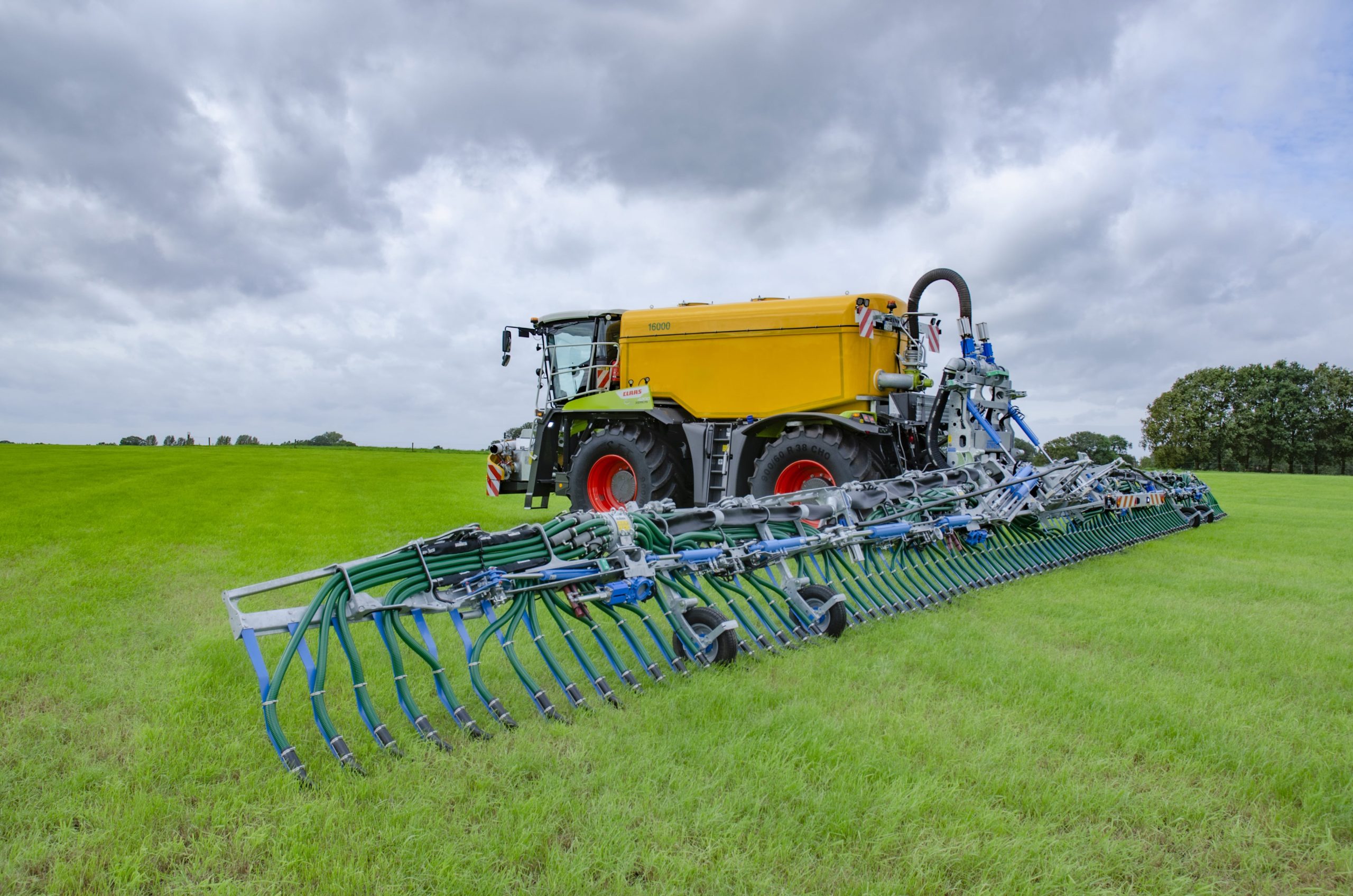

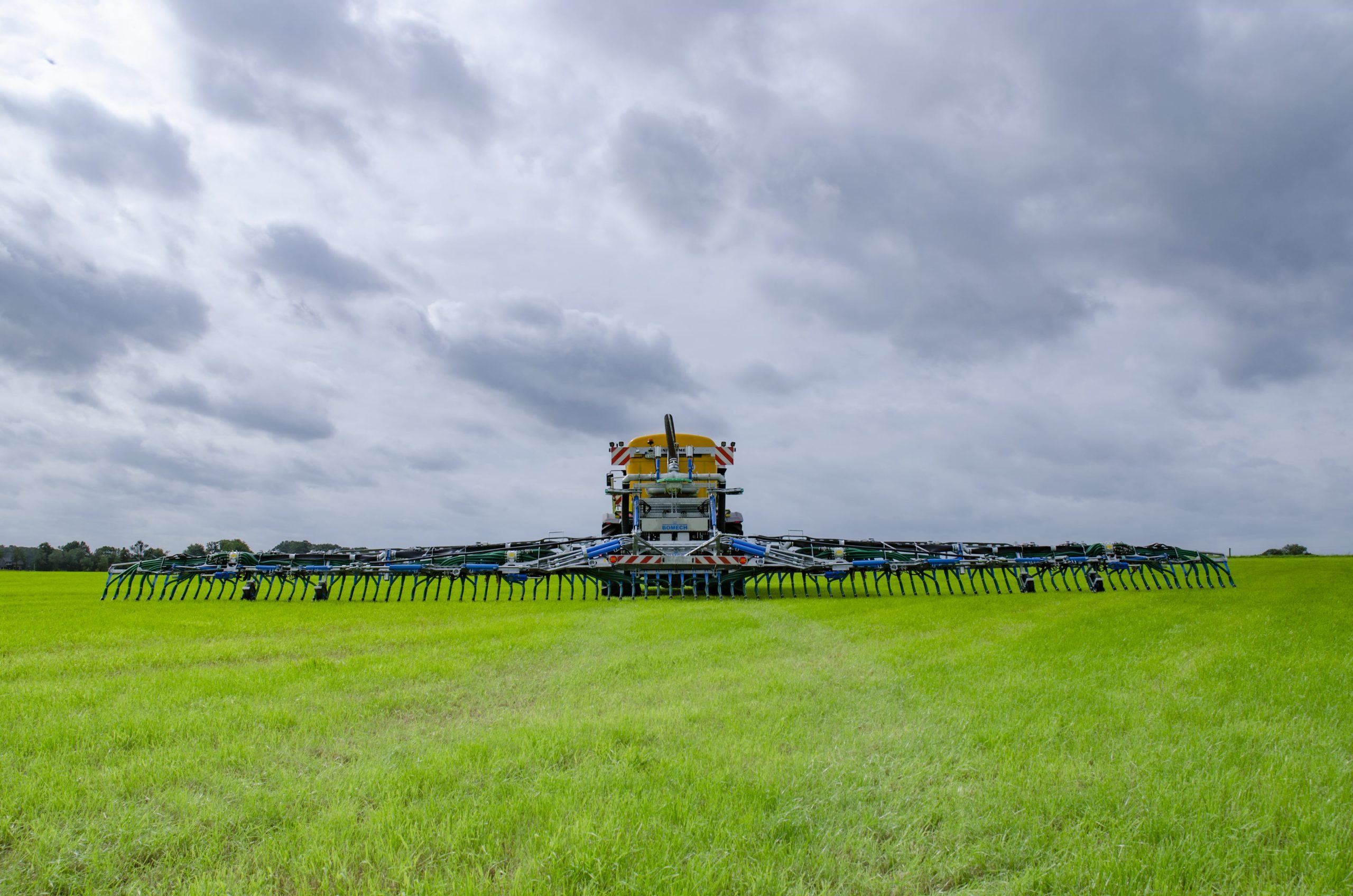

The Bomech Trac-Pack trailing shoe is a compact and stabile slurry spreader, specially developed for self-propelled vehicles. It is available in working widths 12, 15, 18, 21 and 24 m and has a transport width of only 2.99 m and is equipped as standard with two (12 m / 15 m / 18 m) or four (21 m / 24 m) Alrena precise macerators.

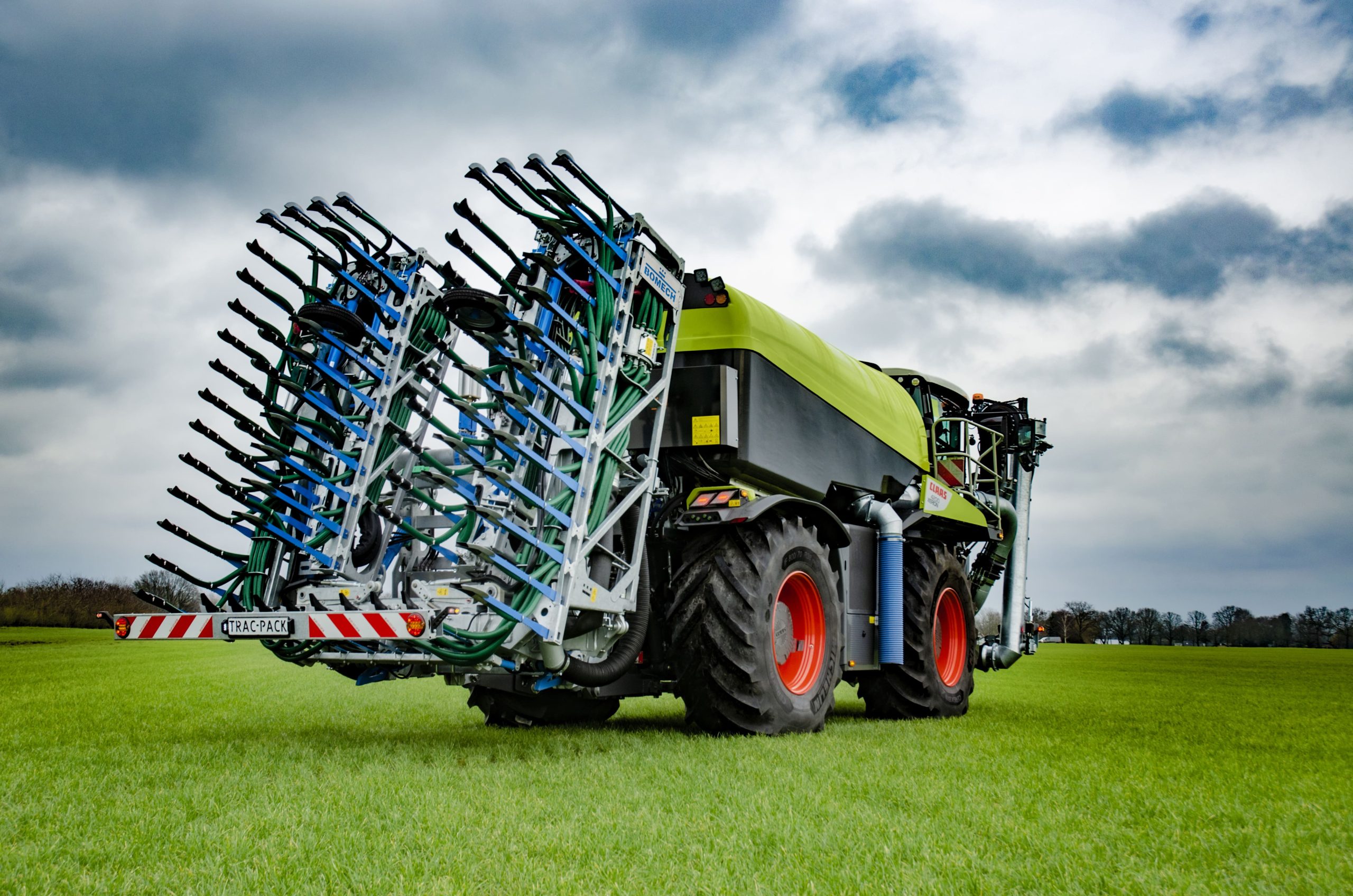

The Bomech Trac-Pack trailing shoe distributor completely folds behind the selfpropelled vehicle. All cylinders of this fourfold folding are equipped with an end cushioning. The Trac-Pack series is equipped with hydraulic valves under the debris traps of the macerators, in such a way that the streets and agricultural roads should not be soiled with slurry.

Simple and flexible in use
Due to the compact design and a centre of gravity close to the transport vehicle, the Trac-Pack can be retrofitted to almost any vehicle and can be quickly exchanged with any other equipment that can be used behind a self-propelled vehicle. A reduction of the width of the machine is possible on every version with a hydraulic arm extension folding of 1.5 m per side. A possible additional section control of the working width can be realised according to the customer’s wishes with the ASC compressed air system. On the 18 m and 24 m, a reduction of the width is standard with an arm extension folding of 1.5 m per side. On the 15 m and 21 m, this arm extension folding is optional.

Suitable for self-propelled tankers

Trac-Pack features:

1. Transport width only 2.99 m
2. Folds simply and compactly behind the selfpropelled vehicle
3. Solid and professional manufacture
4. Automatic level adjustment on the middle frame and on both side arms for optimal contour adjustment
5. All cylinders have end cushioning for maximum performance
6. Two or four Alrena precision macerators with rotating cutting system
7. Very quick and easy to mount and dismount
8. The Trac-Pack 18 m and 24 m are equipped as standard with an arm extension folding of 1.5 m
9. The Trac-Pack series is secured with a 3-dimensional impact protection system of 1.25 m
10. Various automatic section control options are available (mechanic, hydraulic or air pressured)
11. Prepared for 3-/4-/5-point linkage, category 3 or 4
12. Easy installation on every self-propelled vehicle
13. Can drive up to 20 km/h in working position
14. The Trac-Pack series is equipped with armoured trailing shoes as standard

Technical Data Trac-Pack 12 metre

– Working width 12 m
– Transport width 2.99 m
– Weight 2650 kg
– Hose distance 25 cm
– No. of outlets 48
– Macerators 2

Technical Data Trac-Pack 15 metre

– Working width 15 m
– Transport width 2.99 m
– Weight 2750 kg
– Hose distance 25 cm
– No. of outlets 60
– Macerators 2

Technical Data Trac-Pack 18 metre

– Working width 18 m
– Transport width 2.99 m
– Weight 3300 kg
– Hose distance 25 cm
– No. of outlets 72
– Macerators 2

Technical Data Trac-Pack 21 metre

– Working width 21 m
– Transport width 2.99 m
– Weight 3750kg
– Hose distance 25 cm
– No. of outlets 84
– Macerators 4

Technical Data Trac-Pack 24 metre

– Working width 24 m
– Transport width 2.99 m
– Weight 4000 kg
– Hose distance 25 cm
– No. of outlets 96
– Macerators 4

Patented system.
Dimensions and designs mentioned are entirely without any obligation whatsoever and are subject to alternations at any time without prior notice.
