UP

Available in:
– UP 6 meter
– UP 7.5 meter
– UP 9 meter
– UP 10.5 meter

The Bomech UP is a trailing shoe distributor, specially designed for smaller tankers with minimal preparation. Available in working widths of 6 m, 7.5 m, 9 m and 10.5 m.

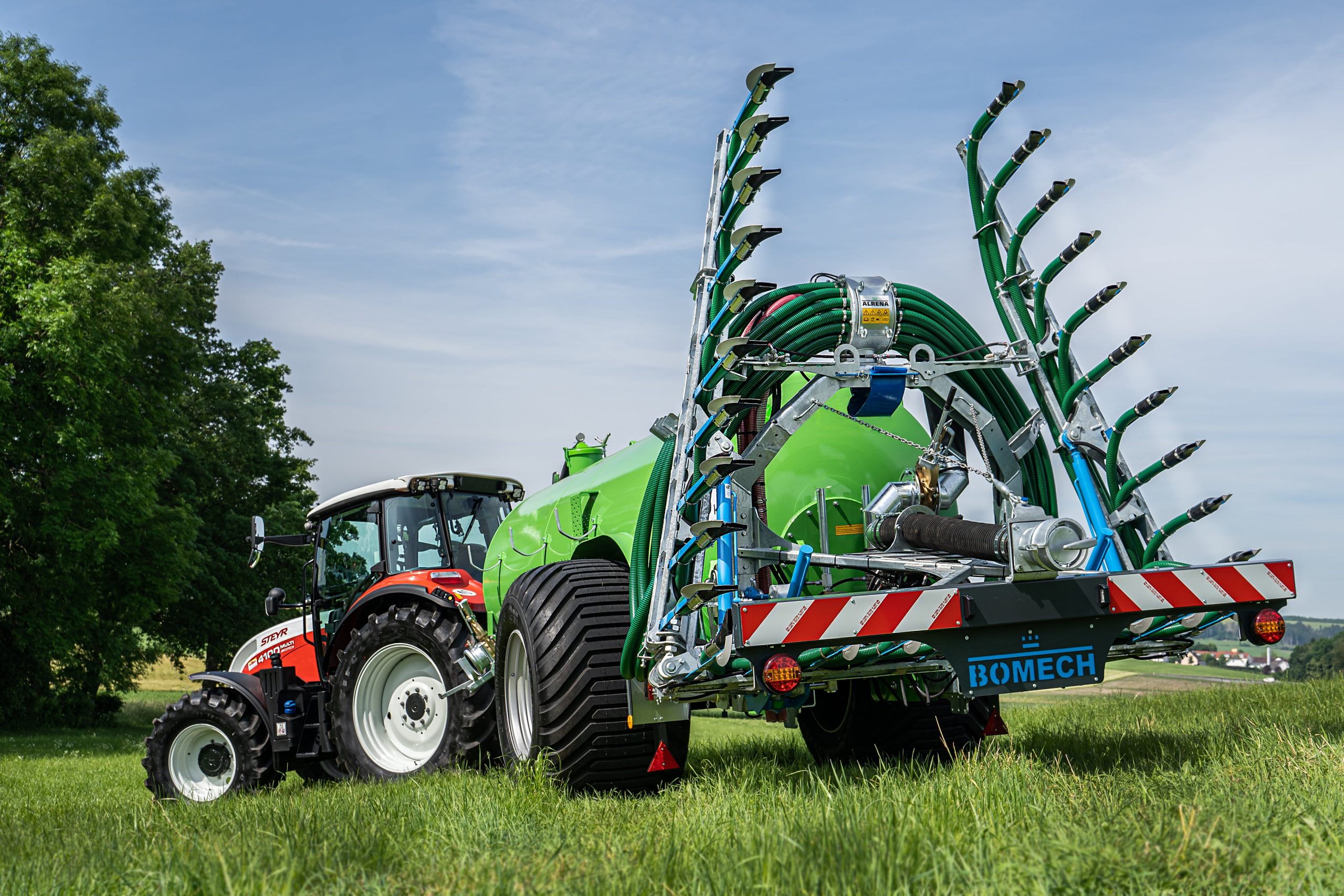

The Bomech UP folds vertically. The boom folds compactly behind the tanker, with an outer transport width of only 2.55 m and a transport height below 3.3 m for safe and comfortable road travel. With the Bomech quick-change system, the UP is easy to attach to the tanker.

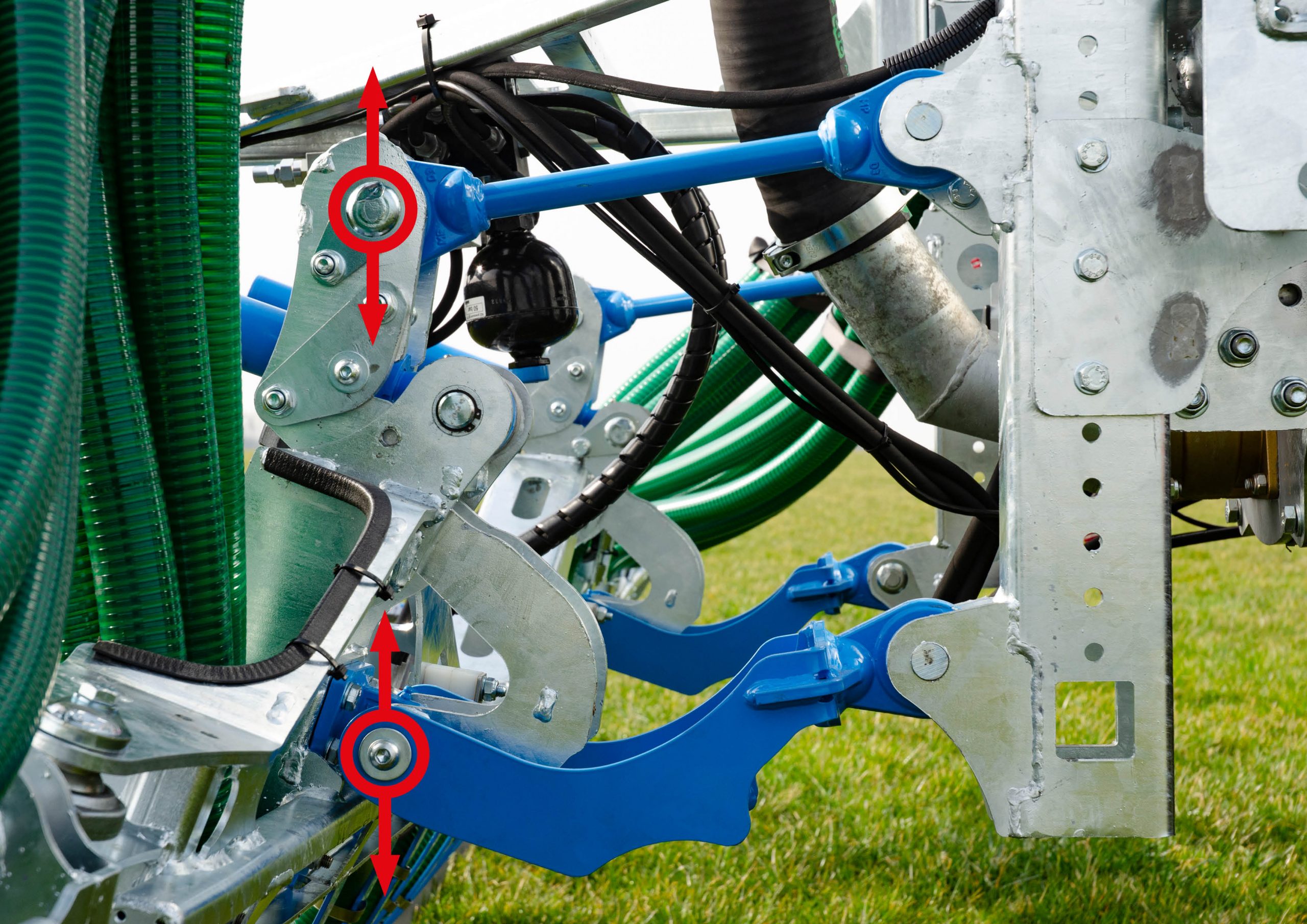

Unequalled ground tracking thanks to new Bomech Field Contour System (FCS)
A unique top feature and heart of the UP series is the newly developed Bomech FCS ground tracking system. The system produces unequalled ground tracking in uneven terrain and slopes, even under the most difficult terrain conditions. By means of the FCS system, the trailing shoe distributor can adapt to the ground contour completely free of the tanker movements, in the transverse and longitudinal direction and thus always ensuring optimum slurry placement.

Features of the UP:
  1. Transport width 2.55 m
  2. Working width 6 m has a total height of 2.5 m
  3. Working width 7.5 m, 9 m and 10.5 m have a total height of 3.3 m
  4. Very lightweight
  5. Unique and newly developed Bomech Field Contour System (FCS) for perfect ground tracking
  6. All hydraulic folding cylinders have end cushioning for maximum performance and gentle folding
  7. Working widths 7.5 m, 9 m and 10.5 m have an impact protection system left and right with breaking bolts
  8. A highly positioned Alrena macerator with stone / debris traps
  9. Mounting options for any slurry tanker with minimal mounting preparation thanks to the Bomech quick change system
  10. Only 35 litres of hydraulic oil required
  11. Multiple control options with a 2xDA sequence control or the electro-hydraulic Bomech I-Control
  12. Hoses are not bent during lifting or folding and are thus long-lasting
  13. Also available in dribble bar model and for umbilical systems
  14. Can drive up to 20 km/h in working position
  15. Easy installation for almost every tank
Technical data UP 6 meter

– Working width 6 m
– Transport width 2,55 m
– Weight 575 kg
– Hose distance 25 cm
– No. of outlets 24

Technical data UP 7.5 meter

– Working width 7.5 m
– Transport width 2,55 m
– Weight 590 kg
– Hose distance 25 cm
– No. of outlets 30

Technical data UP 9 meter

– Working width 9 m
– Transport width 2,55 m
– Weight 800 kg
– Hose distance 25 cm
– No. of outlets 36

Technical data UP 10.5 meter

– Working width 10.5 m
– Transport width 2,55 m
– Weight 825 kg
– Hose distance 25 cm
– No. of outlets 42

Patented system.

Dimensions and designs mentioned are entirely without any
obligation whatsoever and are subject to alternations at any
time without prior notice.
