NEW: Bomech Trac-Pack
Compact, easily exchangeable and in accordance with the law

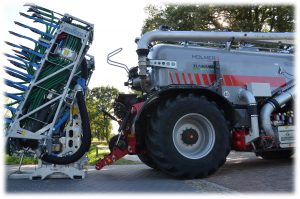

The Bomech-Trac-Pack trailing shoe distributor is a compact and stable slurry distributor, especially developed for self-propelled slurry processing machines. The Bomech Trac-Pack trailing shoe distributor is available in working widths of 12, 15, 18 and 21 meters. Despite these large working widths the Trac-Pack has a transport width of only 2.99 meters. Due to its compact design and a centre of gravity close to the transport vehicle, the Trac-Pack can be retrofitted to almost any vehicle with a lift.
Folding behind the self-propelled slurry machine
The challenge with self-propelled slurry machines is to be able to mount slurry distributors with a large working width. It is often not possible to fold in sideways within the maximum, legally permissible, outer width. As the tankers are often too short and too wide and thus exceeding the approved transport width. For safe and responsible transport, the only remaining option is to fold the distributor compactly behind the self-propelled machine
Optimal driving comfort on the headland
One of the top features of the Trac-Pack is the hydraulic suspension system. This allows the trailing shoe distributor to swing independently of the self-propelled machine at four hydraulic suspension points in the centre frame, resulting in optimal driving comfort on the headland. Furthermore, the hydraulic suspension system in combination with the integrated level adjustment system ensures perfect ground contour following.
Easy to exchange
As self-propelled slurry processing machines are used as efficiently as possible throughout the year, it is often necessary to change between the trailing shoe distributor and e.g. a slurry cultivator or a disc injector several times a year. As the Trac-Pack is simply attached to the 3- or 4-point linkage (cat. 3 or 4) on to a self-propelled machine, it is also easy to change to other machines within a very short time
Standard fully equipped with:
- 2 or 4 Alrena precision macerators
- LED-lighting set
- Hydraulic cylinders with end cushioning
- Integrated suspension system for perfect ground contour following
- Hydraulic suspension system for optimal driving comfort
- slurry flow 12.000 litres p/minute
- Mounting options in 3- or 4- point linkage, cat. 3 and 4
- Section control left and right
Optionally available with: various partial width section controls (mechanical or with compressed air) to reduce working widths and close hoses tramlines, various arm folding possibilities and the possibility to set-up a central lubrication system.
Technical information Trac-Pack
| Type | TP12 | TP15 | TP18 | TP21 |
| Working width (m) | 12 | 15 | 18 | 21 |
| Transport width (m) | 2,99 | 2,99 | 2,99 | 2,99 |
| Transport height (m) | 3,60 | 3,60 | 3,60 | 3,60 |
| Weight (kg) | 2.350 | 2.450 | 2.700 | 3.350 |
| Hose distance (cm) | 25 | 25 | 25 | 25 |
| Number of outlets | 48 | 60 | 72 | 84 |
Alternative Bomech solutions for self-propelled technology
The already available Bomech trailing shoe distributors for self-propelled slurry processing machines will still remain on the market. This means that the Flex 8.8 (8.8 m working width) and Multi HC for self-propelled machines (12 to 24 m working width) are still available for customers who are looking for a self-propelled solution with e.g. a smaller working width or for fixed mounting.
